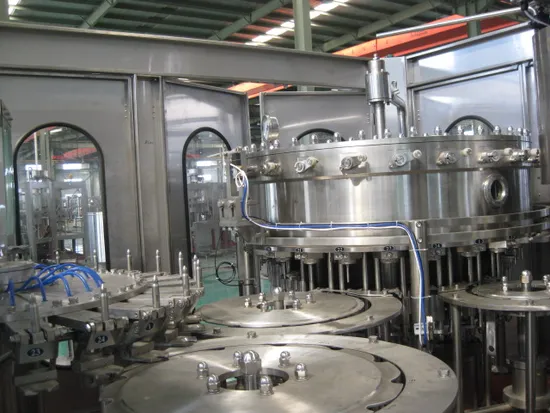

2018 Sparkling Water Filling Machine in Pet Bottles

Product Description

Features:
1) The machine is mainly used in beverage filling operations;
2) The three functions of bottle washing, filling and capping are composed in one body of the machine;
3) The whole machine is automatic;
4) The machine is used to fill carbonated drink in bottles made of polyester and plastics;
5) The machine is convenient to adjust the machine to fill various types of bottles;
6) The filling operation is faster and more stable due to the isobar filling operation of the new tpye is adopted;
7) The output and benefit of the machine is higher than the machinery of the same specification;
8) The advanced OMRON programmed controller (PLC) is adopted to control the machine runs automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speeds and coordinated with transducer of the main machine to make the operations of moving bottle forward steadily and reliably;
9) It is convenient to operate with higher automation due to every parts of the machine is inspected to run with photo electrical detector;
10) The machine is idea-preferred equipment for beverage maker.

main technical standards
model	JR40-40-10D	JR50-50-12D	JR60-60-15D
washing heads	40	50	60
filling heads	40	50	60
capping heads	10	12	15
production capacity	15000b/h(0.5L)	18000b/h(0.5L)	21000b/h(0.5L)
motor power	7.5	11	11
