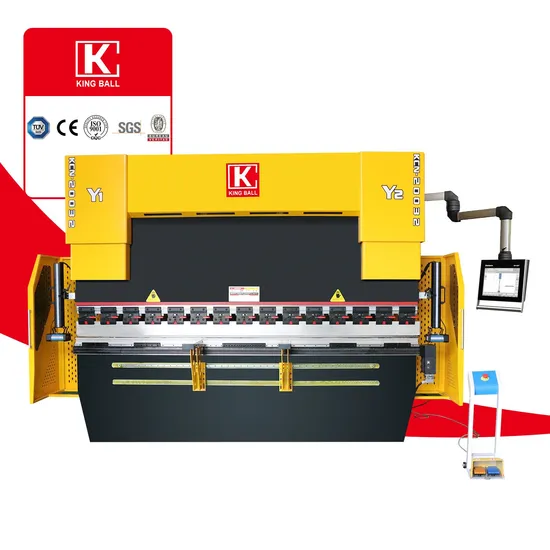

600t Hydraulic Press Brake Sheet Metal CNC Press Machine Hydraulic Press Brake Machine

Product Description

Products Description

Electro-hydraulic CNC Press Brake			50040	50050	50060
Capacity		kN	5000	5000	5000
Max. Bending Length		mm	4000	5000	6000
Between Columns		mm	3100	4000	4800
Max. Shut Height		mm	590	590	590
Slide Stroke		mm	320	320	320
Throat Depth		mm	500	500	500
Down Speed		mm/min	100	100	100
Pressing Speed		mm/min	9	9	9
Return Speed		mm/min	90	90	90
Main Motor Power		kW	37	37	37
X axis stroke		mm	700	700	700
X axis speed		mm/s	250	250	250
R axis stroke		mm	200	200	200
R axis speed		mm/s	60	60	60
Outline Size	L	mm	4500	5500	6500
	W	mm	2800	2800	2800
	H	mm	4100	4200	5200
Weight		kg	38000	42000	50000

Details Images
KCN Series Electro-hydraulic Synchronous CNC Press BrakeMain functions and featuresOverall welded and processed structure.Save electricity, Compared with the traditional transmission device, the electricity consumption is 50%.Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02,high working effective, can improve 30%.The noise is reduced and the machine is quieter.Save oil, Hydraulic fluid use is very small, only for the traditional 50 %Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance. Ram stroke(Y1, Y2),backgauge (X,R,Z) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision. Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Main motor Delta servo motor SVP control technology,energy saving rate over 50%, avoid hydraulic oil fast heating
up,reduce hydraulic errors.Laser safety protectionDSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the
machine.
DSP Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an
obstacle is detected, such as an operators fingers, detection is immediate and the machine can be stopped.Bending followerSheet supporting plate can follow the workpiece during the bending. The following degree and speed are controlled by CNC
controller. Bending-help device can move along linear guide left and right
The height can be adjusted up and down manually, also the de-
vice can move front and rear to match the die opening manually.
Two choices for supporting table: Brush and stainless tube. The bending-help device can be controlled to work simultaneously or independentlyAutomatic Lase bending angle measurement systemAngle measurement
Spring-back measurement
Very high accuracyWorks contactless
