Heavy-Duty Waterproof Automotive Connectors for Secure Plug Connections

Product Description

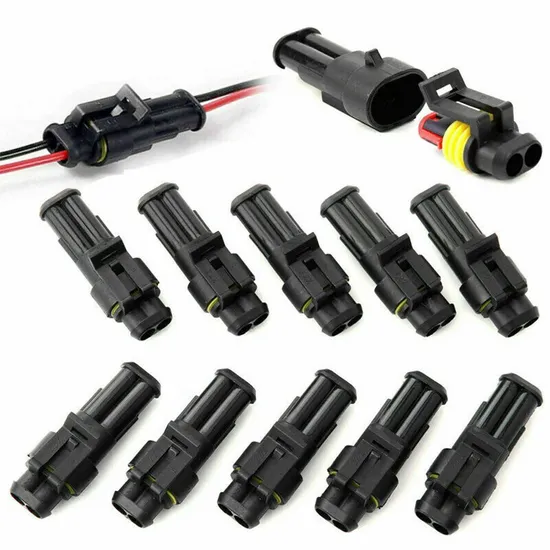

Product Description Sealed Male and Female Plug Automotive Connectors
AMPSEAL connectors provide rugged reliability and environmental
sealing. They are available in cable plugs and PCB mount headers that
are designed to stand up to high-temperature underhood applications.
The pre-assembled receptacle housing connector features built-in contact
sealing and an integral interfacial seal that protects mated connectors.
Product Parameters DIMENSIONS for 8 Pin Tyco AMP Waterproof Electric Auto Connector

Cavity	Overall Length A	Overall Height B	Overall Width C	Overall Length Straight D	Overall Height E	Overall Width F	Overall Length 90° G
8	1.32 (33.6)	1.36 (34.6)	1.08 (27.4)	1.35 (34.3)	1.26 (32.1)	1.61 (40.8)	1.49 (37.9)

Dimensions are for reference only.

Position	Keyed Housing Color	Contact Finish	Receptacle Housing	Without Seal	With Seal
8	Black	Tin plated	776286-1	776279-1	776280-1
		Gold plated		1-776279-1	1-776280-1
	Natural	Tin plated	776286-2	776279-2	776280-2
		Gold plated		1-776279-2	1-776280-2

Certifications
Packaging & Shipping
Our Advantages 1) RoHS/UL/CCC/CEA/CE/SAA certificated
2) ISO9001,TS 16949 system certificates
3) Prompt delivery, and accept urgent order.
4) 100% test before delivery.
5) Experienced manufacturer for 10 years.
6) Trial run order or small order are acceptable.
7) Best price and competitive service to you

After Sales Service Technical support online service provided. OEM available. Our product with test report and certification Our product with 12 months warranty Company Profile
FAQ Q: Is small order less than 100pcs accept?
A: Yes, you can buy small order in our shop.
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes. Please contact us on line or Email us, then we would send the catalogue.
Q: Do you have a price list include all connectors?
A: We only have few mainly products price list for your reference. For the others, please kindly send us your demand, then we would quote accordingly.
Q: I can't find the product on your catalogue, only have par no. Or picture, will you search for me?
A: Our catalogue shows most of our products, some new connectors, we didn't update, so please feel free to contact us with the part no. or picture.
Q: What about your delivery time?
A: We have a lot of products in stock, the delivery time would be within 3 working days. If out of stock, we will check the delivery time for you
Q: How to ship my order? Is it safe?
A: For small package, we will send it by Express, such as DHL, FedEX, UPS, TNT, EMS. That's Door to Door service.
For big packages, we will send them by Air or by Sea, ensure the package safety.
Q: What kind of payment do you accept?
A: T/T. PAYPAL or Western Uion
Q: Could I ask making a new mould?
A: Sure, please offer 2-5pcs samples for us design and produce for you.
Q: How long to make a new mould?
A: 30-45 days depending on the samples' complexity.
