Two Roll Open Mill Laboratory Plastic Rubber Mixing Sheet

Product Description

Our company mainly produces open rubber mixing machines, rolling machines, film cooling lines, flat vulcanizing machines, automatic rubber mixing lines, recycled rubber equipment and their accessories.If you have any needs in this regard, feel free to leave me a message at any time

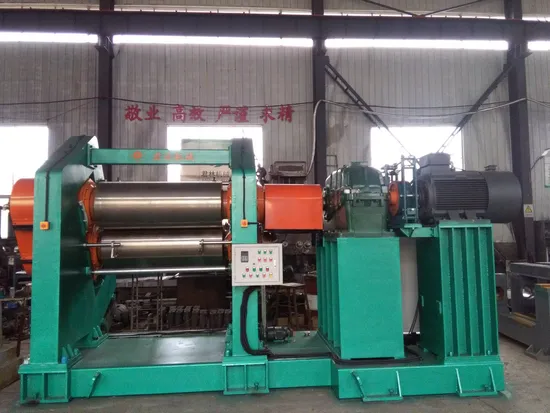

XY-3R-252 Three Roll Rubber Calender Main Technical SpecificationsUssageThe Three-roll calender is mainly used for the pressing sheet of rubber material, the bonding of rubber sheet and the rubbing of textile material or cord fabricMain technical parametersDiameter of roller : 252mmThe working part length of roller: 720 mmRoller structure: Hollow smooth roller Roll arrangement form: R typeCalendered maximum products width: ≤650mmMinimum thickness of calendered products: ≥ 0.2mmRoller production speedRoll speed (Drive roll): 2.24 ~ 15.6r/min
Roller speed ratio (Upper, Middle and Lower rollers) : 1:1:1
8. Main motor: 6P-22Kw Frequency conversion motor
9. Reducer: Hard tooth surface reducerDistance adjustment device: ElectricRoller support structure: Rolling bearingLubrication method: Diy oil lubricationStock guide device: Manual mobile14.Total weight of equipment: ~6t
Equipment structure compositionRoll group: Three groupsRoller temperature adjustment device: Four groupsBase and frame: One groupDistance adjustment device: Two groupsStock guide device: One groupsTransimmion mechianism: One groups Emergency stopping device: One groupLubricating device: One groupElectrical control: One groupTapping knife: One groupStructure descriptionRoller and bearing group1.1 Roller structure: All rollers are hollow smooth rollers.
1.2 Material: Alloy chilled cast iron, tempered and finished.
1.3 Roller working surface hardness: HS: 68 ~ 75Bearing adopts double row aligning roller bearing. The bearing seat is made of gray cast iron and processed by tempering treatment. And with lubricating oil holes. Roller temperature adjustment device4.1 Roller temperature regulating device form: Use closed roller temperature regulating device.
4.2 Water inlet and outlet of roller heating and cooling are connected through rotary joints.
5. Base and frame
5.1 Base: Made of rectangular tube and steel plate welded, processed after annealing.
5.2 Frame: Welded by steel plate, processed after annealing.
6. Distance adjustment device
6.1 Adjustment range: 0.1~5mm
6.2 It is composed of nut, screw, motor, reducer, etc.
6.3 Distance Adjustment Mode: Electric
6.4 Power of distance adjustment motor: 0.37KW
7. Stock guide
7.1 The machine body is made of welding structure, then processed. The baffle plate adopts MC nylon.
7.2 Type of stock guide: movable
7.3 Adjustment Mode: Manual
8.Transmission mechanism
8.1 Main motor: YVP200L-6P -22KW AC Frequency conversion motor, speed 990rpm.(One Variable frequency drive)
8.2 Reducer: ZSY250 single input, single output, closed oil-immersed hard tooth surface gear reducer. Noise ≤78dB.
8.3 Reducer gearbox and motor coupling: Elastic pin coupling
8.4 Reducer gearbox and motor coupling: Nylon rod pin coupling
9. Emergency stop device
9.1 Brake type: Electric hydraulic brake
9.2 Installing the Emergency Stop Button
10. Electrical control:
The main low-voltage electrical appliances use Chint, Delixi electrics
This is a picture of us attending the exhibition
It's an award and a lot of professional recognition
Q1: Where is your factory located?
A1: Qingdao Junlin machine co.,Ltd is located at No. 9 Tangdao Bay Road, Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: Our company has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines are depended on the machines' options. Normally, the delivery time of standard machine could be within 30-45 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, our company will provide one set standard spare parts to customer according to different machines.
