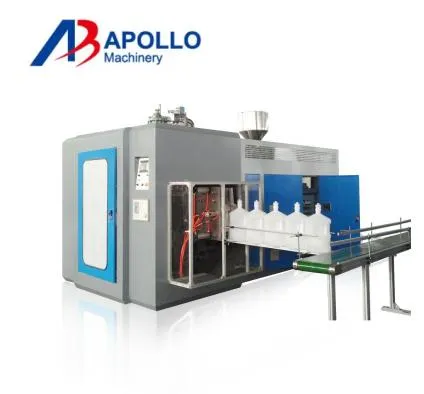

4 Gallon Barrels Bottle HDPE PP PC Plastic Blow Molding Machine

Product Description

Product Description
HDPE Bottle Making Machineries 5~20L
Model No.: ABLB90(single station single die head)
ABLB90 auto plastic can making machines were specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L.
The features of these machines:
(1)They are suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of these blow molding machines are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
The technical parameter:

Max. Product volume	15 liters
Output capacity	70~90pc/h
Screw diameter	90 mm
Screw L/D ratio	24 L/D
Screw drive power	37 KW
Screw heating capacity	6 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	11 KW
Clamping force	120 KN
Max.size of mold	530×550 mm
Mold stroke	300-800 mm
Max.die diameter	200mm
Blowing pressure	0.6 mpa
Air Volume	0.7 M³/MIN
Cooling water pressure	0.3 mpa
Water consumption	70 L/MIN
Size of Machine	4.3x2.2x3.0 m
Weight of machine	8 ton

The component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Company Profile


Production Process
Customer photo
Related Products
Machine Structure
Our Service
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. 2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional. 3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .b. Port of Loading: SHANGHAI, CHINA.c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.d. Container needed: One 20GP container. 4. How is APOLLO after-sales service?
a. InspectionBefore delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.b. Debugging InstructionAPOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before our engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.C. User TrainingAPOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves. 5. What is the warranty period?
a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.b. Mould within one year or 5 millions warranty.
