1200t/H 38mm Hpt800 Cone Crusher for Crushing Plant From China

Product Description

Product Description 1200T/H 38mm Hpt800 Cone Crusher for Crushing Plant From China

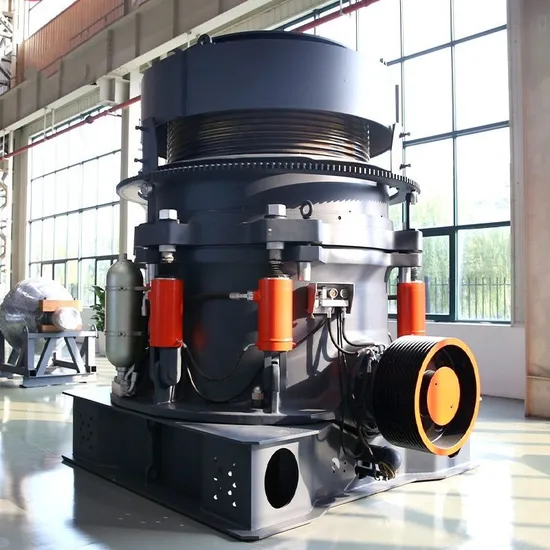

HPT800 High Capacity Cone Crusher For GraniteClose Side feed opening(mm): 265Min CSS (mm): 25Capacity (t/h): 475-950Power (kW): 630HPT Series High-Efficiency Hydraulic Cone Crusher combines crushing stroke with crushing chamber perfectly, which makes capacity improved and efficiency increased. Besides, hydraulic lubrication control system helps bearing of hydraulic cone crusher get double protection.FeaturesUnique interparticle crushing action1. HPT high performance hydraulic cone crusher feature a unique combination of crusher speed, throw, cavity design.2. Inter-particle crushing works between materials that increases the working life of mantle and bowl liner.3. Provide a more consistent gradation and superior products (cubicity). Better performance in the construction and sand making area.Advanced hydraulic system1. Larger diameter tubing and larger capacity hydraulic accumulator improve the stability and response sensitivity.2. Hydraulic motor setting adjustment and lock cylinder make it easy to reset the CSS. The hydraulic tramp release cylinders make it easy to pass tramp iron and clean the cavity. Less downtime will cut the maintenance costs.Integration of the hydraulic station and lubrication system1. Integration of the hydraulic station and lubrication system features a small footprint installation space and easy maintenance.2. 1/5 of Lubrication oil consumption is saved compare with the similar model crushers from the competitors.3. Germany AKG air cooling system avoids the disadvantage of water cooling system, such as lack of water and leakage of water.4. Larger flow oil pump will guarantee the stability oil flow.5. The addition of temperature sensors will keep track of the oil return temperature will connect the crusher hydraulic and lubrication system to the control system, which will guarantee the stable performance.Advanced liner retention technology1. The thicker liners increase reliability and service life.2. Advanced liner retention technology greatly simplifies the liner change, Epoxy resin is not needed, which will cut the manpower and time cost.Much more reliable1. Equipped with the Siemens PLC and touch screen intelligent control system optimizes cone crusher operation convince and data saving.2. Thanks to the advanced design, the bearings have a larger bearing area and larger bearing capacity and longer service life.3. The overall casting frame with box beam design characterized by larger strength.4. The interior of the crusher is protected from dust by the adoption of multiple sealing protection, such as positive pressure dust prevention system, U - T seal and contact-type spherical floating seal.

Model	Cavity Type	Feed port size (mm)	Minimum discharge opening (mm)	Processing capacity (t/h)	Maximum installed power (kW)
HPT100	C1()	140	19	75-140	90
	C2()	100	13	60-110
	M()	70	9	52-100
	F1()	50	9	50-95
	F2()	20	6	45-90
HPT200	C2()	185	19	145-250	160
	M()	125	16	135-235
	F1()	95	13	115-220
	F2()	75	10	90-190
HPT300	C1()	230	25	220-440	250
	C2()	210	19	190-380
	M()	150	16	175-320
	F1()	105	13	145-280
	F2()	80	10	110-240
HPT400	C1()	295	30	300-630	315
	C2()	251	25	285-560
	M()	196	20	250-490
	F1()	110	13	180-345
	F2()	90	10	135-320
HPT500	C1()	330	38	425-790	400
	C2()	290	30	370-700
	M()	210	22	330-605
	F1()	135	16	270-535
	F2() e	95	13	220-430
HPT800	C1()	350	38	570-1200	630
	C2()	299	32	520-1050
	M()	265	25	475-950
	F1()	220	16	370-800
	F2()	150	13	310-600
