Carbon Steel/Stainless Steel Flame Arrester for Pipe Line

Product Description

Specification

DIA	Dn50 - Dn300
Class	150lb to 2500lb
Material	Customized
Design	Customized
Application Field	Metallurgy,Light Industrial,Electric Power,Petroch

Product Description
1, Storage tank explosion proof corrugated flame arrester type is to prevent external flame there is flammable gas fleeing into the equipment or prevent the spread of flame in the equipment room.Tank explosion proof corrugated flame arrester is application by narrow pore heat conductor,because the heat loss and out of the principle design and manufacturing.Tank explosion proof corrugated flame arrester fire resistant layer structure have gravel type,type or corrugated metal screen type.
2, Storage tank explosion proof corrugated flame arrester type is one type of the flame arrester,is introducing advanced technique of similar foreign products, and in accordance with the actual situation of domestic and China design and production of replacement products, safety equipment for oil storage tank, used to prevent flammable gas, liquid and prevent the spread of the flames and explosions caused by tempering.The flame arrester is fire resistant layer commonly used stainless steel or copper nickel alloy material pressed into corrugated, corrugated is decided by the size of the gas properties and prevent the flame speed. The working principle of the flame arrester, at present, there are mainly two kinds of Views: one is based on heat transfer is based on a wall effect.
3, Pipeline explosion-proof crimped fire arrester type is the application of the flame through the narrow pore heat conductor, explosion-proof fire retardant corrugated metal core formed of triangular elements to damage due to flame, the heat loss and out of the principle design and manufacture.Tank explosion proof corrugated flame arrester is mainly composed of two parts of the shell and the fire board. Hous. Housing should have enough strength, the shock pressure explosion.Fierce flame corrugated type arrester to prevent deflagration, and can withstand the mechanical and thermal effects of the corresponding, small flow resistance, easy cleaning and replacement. Corrugated type fire retardant plate supported by stainless steel, copper nickel alloy, aluminum or aluminum alloy.

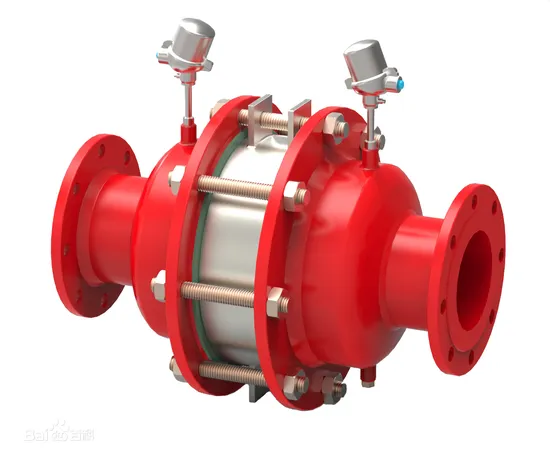

Product Display

Workshop Display
Multi product Display
Packing Display
