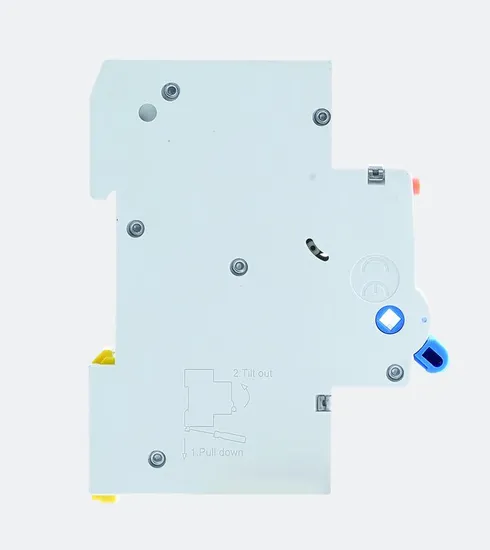

Magnetic Compact RCBO 18mm with Overcurrent Protection 32A
| US$11.00 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
VB12L-40
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
ELCB
Poles Number
1p+N
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Overcurrent Protection
Certification
CE
Pole
1p+N
Rated Current
32A
Rated Voltage
230V
Rated Operated Current
30mA
Transport Package
Cardboard
Specification
C32
Trademark
VEKON
Origin
China
HS Code
8536200000
Production Capacity
100, 000 PCS
Product Description
FunctionVB12L-40 series RCBO mainly applies to the circuit of AC 50Hz, rated voltage 240V, rated current up to 40A. When electric shock occurs to human, leakage current or voltage in grid exceeds stipulated values, RCBO cuts off the fault power in a very short time to protect the safety of human and electrical equipments, it also owns the functions of overload and short circuit protection. In addition, it can switch on and off non frequently the electrical facilities and lighting circuit while the circuit works well.
Application
Lighting and distribution system for industry and commerce system.
Conforms to
IEC/EN 61009-1 & 61009-2-1
| Main parameters | |
| Types | Values |
| Rated voltage(Un) | 240V AC |
| Rated current(In) | 6A,10A,16A,20A,25A,32A,40A |
| Rated residual operated current(I△n) | 0.03A,0.1A,0.3A |
| Rated residual non tripping current(I△no) | 0.5I△n |
| DC component | AC type, A type |
| Poles | 1P+N |
| Instant tipping type | B type, C type |
| Rated short circuit breaking capacity(Icn) | 6000A |
| Rated residual making and breaking capacity(I△m) | 500A |
| Breaking time of residual operated current | See Form 2 and 3 |
| Overcurrent protection properties | See Form 4, Diagram 1 and 2 |
| Mechanical and electrical life | See Form 5 |
| Connection wire | See Form 6 |
| Tightening torque | 1.5N.m |
| Nominal temperatureºC | 30 |
| Operated ambient temperatureºC | -25~+40 |
| Stored ambient temperatureºC | -25~+70 |
| Pollution level | 2 |
| Protection level | IP20 |
| Mounting type | 2 |
