Mechanical Seal Th7n

Product Description

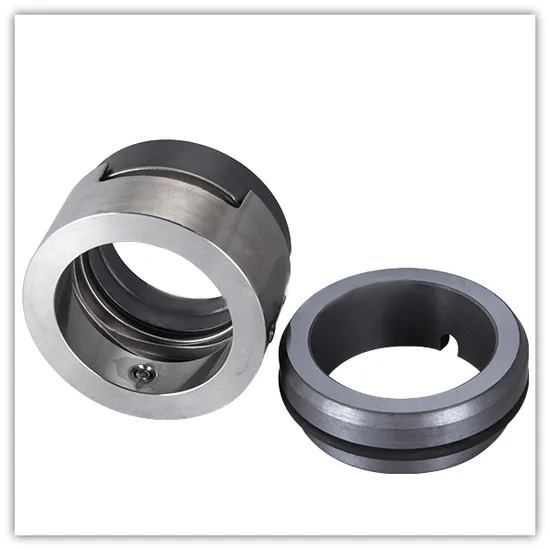

Mechanical Seal TH7N
Replacement to:
H7N, AES SEAL W07DMB,Vulcan 1678,LIDERING LWS10B, Latty B68
Operational Conditions:
Temperature: -20ºC to +190ºC
Pressure: ≤1.2MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: G9
Alternative:

Size/	d0	d	D3	D2	D1	d1	L1	L2	L3	L6	L5	M
Metric
14	18	14	33	21	25	3	32.5	10	17.5	8	6	M5
16	20	16	35	23	27	3	32.5	10	17.5	8	6	M5
18	22	18	37	27	33	3	33.5	11.5	19.5	8.5	7	M5
20	24	20	39	29	35	3	33.5	11.5	19.5	8.5	5.5	M5
22	26	22	41	31	37	3	33.5	11.5	19.5	8.5	8	M5
24	28	24	43	33	39	3	36	11.5	19.5	8.5	5.5	M6
25	30	25	45	34	40	3	36	11.5	19.5	8.5	5.5	M6
28	33	28	48	37	43	3	38.5	11.5	19.5	8.5	8	M6
30	35	30	50	39	45	3	38.5	11.5	19.5	8.5	8	M6
32	38	32	55	42	48	3	38.5	11.5	19.5	8.5	8	M6
33	38	33	55	42	48	3	38.5	11.5	19.5	8.5	8	M6
35	40	35	57	44	50	3	38.5	11.5	19.5	8.5	8	M6
38	43	38	60	49	56	4	38.5	14	22	9	8	M6
40	45	40	62	51	58	4	38.5	14	22	9	8	M6
43	48	43	65	54	61	4	38.5	14	22	9	8	M6
45	50	45	67	56	63	4	38.5	14	22	9	8	M6
48	53	48	70	59	66	4	38.5	14	22	9	8	M6
50	55	50	72	62	70	4	42.5	15	23	10	8	M6
53	58	53	79	65	73	4	42.5	15	23	10	9	M8
55	60	55	81	67	75	4	42.5	15	23	10	9	M8
58	63	58	84	70	78	4	47.5	15	23	10	9	M8
60	65	60	86	72	80	4	47.5	15	23	10	9	M8
63	68	63	89	75	83	4	47.5	15	23	10	9	M8
65	70	65	91	77	85	4	47.5	15	23	10	9	M8
70	75	70	99	83	92	4	52	18	26	10	10	M8
75	80	75	104	88	97	4	52	18	26	10	10	M8
80	85	80	109	95	105	4	51.8	18.2	26.2	9.8	10	M8
85	90	85	114	100	110	4	56.8	18.2	26.2	9.8	10	M8
90	95	90	119	105	115	4	56.8	18.2	26.2	9.8	10	M8
95	100	95	124	110	120	4	57.8	17.2	25.2	10.8	10	M8
100	105	100	129	115	125	4	57.8	17.2	25.2	10.8	10	M8

Q1:Are you a factory or trading company
A1: We are a factory with independent import and export right.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: Can I order one piece for samples to test the quality?
A4: yes ,the samples are free ,express cost are on your side.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time, the tracking number
will be provided to you once the consignment is shipped.
Q6: Do you have products in stock?
A6:Yes, for most standard products ,we have.
Q7:Can you produce Non standard (OEM) product?
A7:Yes, OEM is acceptable, we can produce non-standard products as your requirements (according to your sample or drawing)
