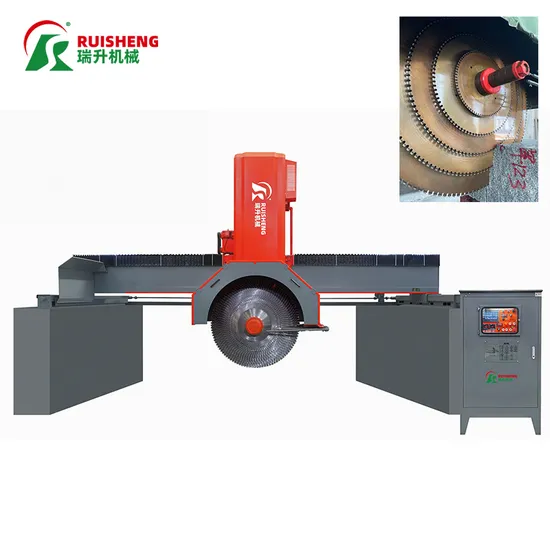

Granite Block Cutter Machine Stone Block Cutting Machine Price
| US$30,000.00-38,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RS2800
Type
Bridge Cutting Machine
Usage
Granite, Marble
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO, CE
Max Blade Diameter
2800mm
Max Processing Length
3300mm
Max Processing Width
2500mm
Max Lifting Stroke
1400mm
Water Consumption
15m³/H
Main Motor
37/55kw
Gross Motor
65kw
Gross Weight
13500kg
Transport Package
Standard Packaging
Specification
950*470*350cm
Trademark
Ruisheng
Origin
Fujian, China
Production Capacity
100pieces/Month
Packaging & Delivery
Package Size
800.00cm * 450.00cm * 370.00cm
Package Gross Weight
12000.000kg
Product Description
Product Description| /Product name | /Unit | RQC-2200-4D PULS | RQC-2500-4D PULS | RQC-2800-4D PULS |
| /Blade diameter | mm | Φ2200 | Φ2500 | Φ2800 |
| /Maximum lifting stroke | mm | 1350 | 1350 | 1350 |
| / Maximum machining length | mm | 3800 | 3500 | 3200 |
| / Maximum processing width | mm | 2200 | 2200 | 2200 |
| /Saw blade number | pcs | 3-22 | 6-22 | 9-22 |
| /Wate consumption | m3/h | 15 | 15 | 15 |
| / Main motor power | Kw | 65 | 75 | 90 |
| /Total power | Kw | 80 | 90 | 105 |
| /Weight | kg | 18000 | 18500 | 19000 |
| /Oveiall dimensions(LxWxH) | m | 8.0x4.4x3.7 | 8.0x4.4x3.7 | 8.0x4.4x3.7 |
RS-2200/2500/2800 uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder toslice, uses inverter to control left-right feeding and adjusts the speed according to the stone material. It uses hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials, The block can be placed on the ground directly and economize the worktable and its maintenance costs: The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360 rotating worktable can be selected if customer re-quires.
