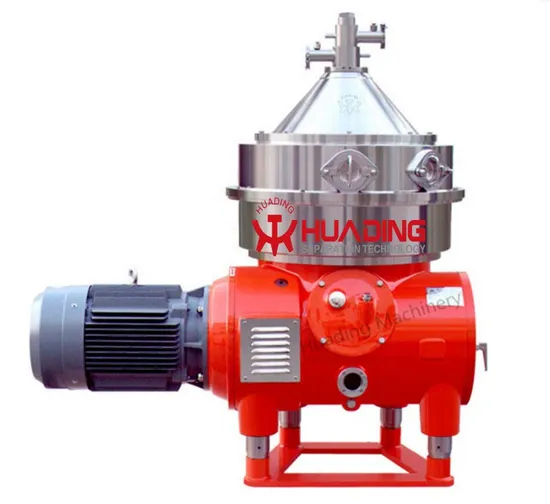

High-Efficiency Nozzle Bowl Starch Centrifuge for Industrial Applications

Product Description

Specifications- primary starch separation
- gluten thickening
- millstream thickening
- middling concentration
- clarification of middling

Applications The STNH series is a starch centrifuge designed for continuous discharge of solids. It is used for classifying, concentrating and washing solids, and for clarifying liquids that contain relatively high solids concentrations. This series starch centrifuge are widely used in the maize starch industry, including primary starch separation, gluten thickening, millstream thickening and middling concentration.
When processing different kinds of tubers as the raw materials for extracting starch, the use of starch centrifuge as a preconcentrator or refining separator is crucial for the best results. These are available in a wide range of different sizes and configurations for tackling specific separation tasks. The starch centrifuge bowl is available in PS, GT, MST, CL structure, with different disc spacing and configurations.


Working principle




The feed consisting of both liquid and solids is introduced into the rotating centrifuge bowl of the starch centrifuge from the top via a stationary inlet (1) and is accelerated in a distributor (2) before entering the disc stack (3). Separation takes place between the discs. The liquid phase moves through the disc stack towards the centre of the bowl and is discharged to the overflow by gravity, via power a ring (4). The heavy solids are collected at the bowl periphery and continuously discharged to the underflow by gravity, through the nozzles (5). Part of the concentrated solids discharged through the nozzles is recirculated into the bowl periphery through the recirculation tubes (6) via the recirculation chamber (7). Wash water used in some applications for displacement of soluble and other impurities from the solids can be introduced to the bowl periphery the same way.


Specifications

Throughput capacity	45 - 220 m3/h
Max.bowl speed	2900 - 5400 rpm
Motor power	30 - 250 Kw
Nozzle number	8 - 30
Noise	88 dB
Weight	2000 - 10000 Kg

Features
- Low energy consumption due to continuous discharge of the solids concentrate through special nozzles
- Clarifier bowl with closed feed and discharge of the product phase to avoid oxygen absorption
- The solids concentrate is discharged continuously from the bowl through special nozzles
- CIP cleaning at operating speed
- Vibration monitoring
- Speed monitoring


After service
Technical service:
-technical direction when installation, commissioning of the starch centrifuge
-training for operation and maintain worker
Training:
-separator working principle and structure of the starch centrifuge
-operation regulation and attention
-machine maintains
