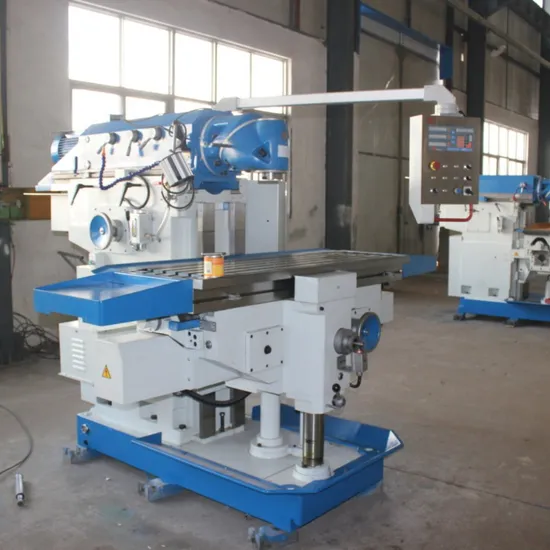

Heavy Duty Industrial Swivel Head Metal Universal Milling Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5750
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wood Case
Specification
2625*2460*2080mm
Trademark
MacTech
Origin
Jiangsu
Product Description
Product DescriptionMain Feature
a,Table 3 axes with ball screws, high precision
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,Table with an extra supporting column, big load, high accuracy
F, It can mill any angle surface through front half-sphere by swivelling milling head.
Mechanical change speeds head stock
universal milling head
universal milling head
universal milling head
Double supporting column
Standard electrical components
Schneider electrical components
| Specifications | Unit | X5750 | ||
| Table size | mm | 500*1600 | ||
| T-slots(NO./width/pitch) | mm | 5*18*80 | ||
| Table travel (X/Y/Z) | mm | 1200*700*500 | ||
| Swivel angle of milling head | - | 360° | ||
| Spindle taper | - | ISO50 | ||
| Spindle speed range | r.p.m | (27) 30-2050 | ||
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/5-500 | ||
| Table rapid speed | mm/min | 2200/2200/1100 | ||
| Distance between spindle nose and table surface | mm | 50-550 | ||
| Distance from spindle center line to column | mm | 45-745 | ||
| Main motor power | Kw | 7.5 | ||
| Feed motor | Kw | AC servo motor X/Y:18NM; Z: 27NM | ||
| Max load | Kg | 1800 | ||
| Overall size | mm | 2625*2460*2080 | ||
| weight | kg | 47000 | ||
