Product Description

Product Description

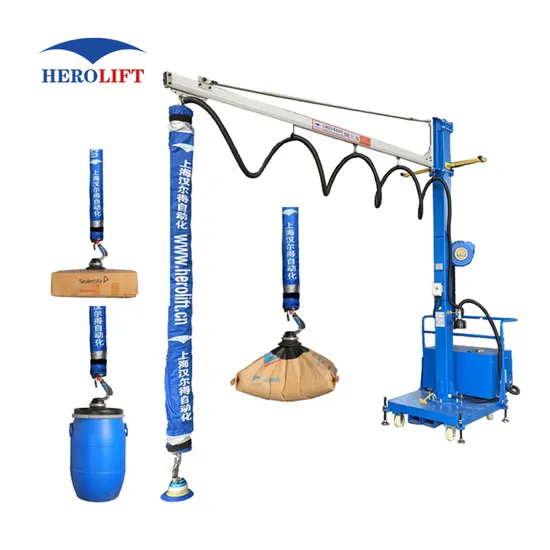

VCL is a compact tube lifter which is used for very quick lifting,capacity 10-50kg.It's widely used in warehouse,logistic center,container loading/unloading.Workpiece could be rotated in horizontal 360 degrees,and turned 90 degrees in vertical.
HEROLIFT VCL series vacuum lifting device with a modular design for loads of up to 50kg. This vacuum lifter brings ease and convenience to the handling of everything from sacks luggage and cardboard boxes to sheet materials such as glass and sheet metal.

Using vacuum technology, the baggage lift is able to transform heavy manual work into light user-friendly tasks. Whether retrofitted in an existing infrastructure or included in the design for luggage or cargo handling in a new terminal, our VCL series lifting equipment will provide helpful solutions. User-friendly and ergonomic emphasizing safety at work, they make light of otherwise back-breaking lifting work.
* Increased productivity
* Reduce the chance of injury to employees
* Increase employee motivation
* Only one person to handle
VCL series is a compact tube lifter which is used for very quick lifting,capacity 10-50kg.It's widely used in airports,warehouse,logistic center,container loading/unloading.Workpiece could be rotated in horizontal 360 degrees,and turned 90 degrees in vertical.We're extremely proud to have created the solution that helps every single baggage handler to eliminate their physical pain, all thanks to Herolift's ergonomic luggage solution.
Characteristic
1, Max.SWL 50KG
Low pressure warning
Adjustable suction cup
Remote control
CE certification EN13155:2003
China Explosion-proof Standard GB3836-2010
Designed according to German UVV18 standard
2,Easy to customize
A large range of standardized grippers and accessories, such as swivels, angle joints and quick connections, the lifter is easily adapted to your exact needs.
3,Ergonomic handle
The lifting and lowering function is regulated with an ergonomically designed control handle. Controls on the operating handle make it easy to adjust the lifter's stand-by height with or without a load.
4,Energy-saving and fail-safe
The lifter is designed to ensure minimum leakage, which means both safe handling and low energy consumption.
+ For ergonomic lifting up to 50kg
+ Rotate in horizontal 360 degrees
+ Swing angle 240 degrees

Serial No.	VCL120U	Max capacity	40kg
Overall Dimension	1330*900*770mm	Vacuum equipment	Manually operate the control handle to suck and place the workpiece
Control mode	Manually operate the control handle to suck and place the workpiece	Workpiece displacement range	Minimum ground clearance150mm,Highest ground clearance1500mm
Power supply	380VAC±15%	Power input	50Hz ±1Hz
Effective installation height on site	Greater than 4000mm	Operating ambient temperature	-15ºC-70ºC

Features

Suction pad •Easy replace •Rotate pad head •Suit various working conditions •Protect workpiece surface	Lifting tube •Shrinkage or elongation •Achieve vertical displacement •Durable and long-lasting
Air tube •connecting blower to vacuum suctio pad •pipeline connection • high pressure corrosion resistance •Provide security	Filter •Filter the workpiece surface or impurities •Ensure the service life of vacuum pump
Rotating head •One-way valve design, • Rotate the lifting tube 360 degrees • Extended pressure holding time • Ensure system safety	Control handle • 360 degrees rotate •Realizing Up and Down Movement •Quick suction and release •Safe lifting and down

Specification

Type	VCL50	VCL80	VCL100	VCL120	VCL140
Capacity(kg)	12	20	30	40	50
Tube Diameter(mm)	50	80	100	120	140
Stroke(mm)	1550	1550	1550	1550	1550
Speed(m/s)	0-1	0-1	0-1	0-1	0-1
Power KW	0.9	1.5	1.5	2.2	2.2
Motor Speed r/min	1420	1420	1420	1420	1420

Detail display

1	Control Handle	6	Column
2	Suction Foot	6	Vacuum Pump
3	Lifting Unit	8	Silence Box(Option)
4	Rail	9	Electric control box
5	Rail Limit	10	Filter

Function
Protection against power failure: ensure that the absorbed material will not fall under power failure;
Leakage protection: prevent personal injury caused by leakage, and the vacuum system is well insulated as a whole;
Protection of current overload: that is, to prevent damage to vacuum equipment due to abnormal current or overload;
Stress test, in-plant installation test and other tests to ensure that each set of equipment leaving the factory is safe and qualified.
Safe adsorption, no damage to the surface of material box
Application
For sacks, for cardboard boxes, for wooden sheets, for sheet metal, for drums, for electrical appliances, for cans, for baled waste, glass plate, baggage, for plastic sheets, for wood slabs, for coils, for doors, battery, for stone.

Service cooperation
Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and Established a reliable brand for more than 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.
