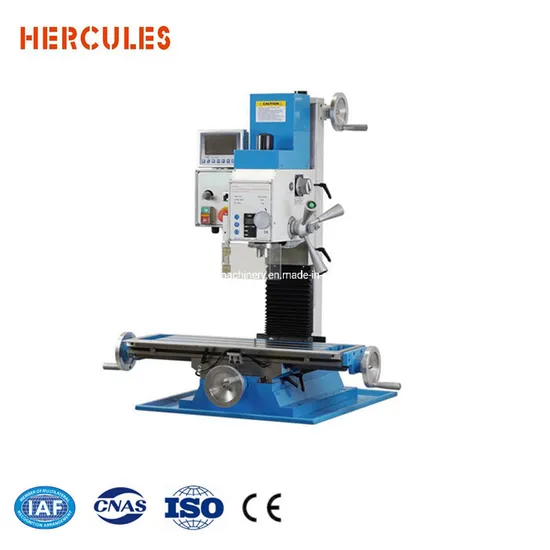

HBM30 Taladro Vertical Drilling Milling Tapping Cutting Lathe machine
| US$1,900.00-2,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBM30
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Wood Pallet
Specification
860*710*1020
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month
Product Description
Features 1. Gear-driven type.2. Milling, drilling, boring, reaming.
3. Variable speed.
4. Foot stand is optional.
| Specification | Unit | HBM30 |
| Max. Drilling dia. | mm | 32 |
| Max.end milling capacity | mm | 20 |
| Max.face milling capacity | mm | 76 |
| Table size | mm | 700 x 210 |
| Table travel | mm | 400 x 200 |
| T-slot | mm | 3 x 14 |
| Spindle taper | MT3/R8/ISO30 | |
| Spindle travel | mm | 70 |
| Spindle speed range | r/min | 50-2250 |
| Spindle speed step | Variable | |
| Distance from spindle nose to surface of table | mm | 210 |
| Distance from spindle nose to table | mm | 470 |
| Main motor power | kW | 1.5kw(Brushless motor) |
| Machine dimensions | mm | 860*710*1020 |
| Machine weight | kg | 220 |
| Hercules Machinery Equipment Ltd. | ||
Standard Accessories:
1. 2-Axis DRO
2. Digital depth ruler
3. Spindle cover with micro switch
4. Drill chuck 3-16/B16
5. Drawbar
6. Arbor MT3/B16-M12
Optional Accessories:
1. Stand
Pictures for reference only:
