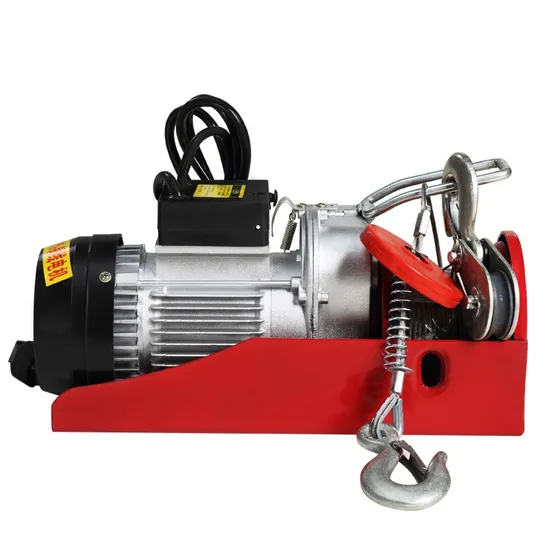

PA Series Mini Electric Hoist Electric Cable Hoist 220V

Product Description

PA series mini electric hoist electric cable hoist 220V

Mini Electric Wire Rope Hoist introduction: A mini electric wire hoist is generally divided into stationary and running type, suitable for various
occasions, can lift goods under 2000kg, especially suitable for lifting heavy items from downstairs of
high-rise buildings.
This kind hoists has many features, such as simple structure, easy installation, small and exquisite, and
use single power supply as its electricity. Mini electric hoists have reached the international standard in
terms of production design and make sure of its security when using, using cast iron structure of motor
cooling fin improves the service life.
The lifting speed can reach up to 10 m/min, steel wire rope at the beginning of design can reach up to
12 meters long (lengthening can be customized), in terms of hook, specially designed as the advanced
double Settings, greatly increased the mini electric hoist lifting weight, mini electric hoist can be used on
220V power supply, especially suitable for daily civilian, industrial production line, the freight logistics,
etc.
Product paremeter as belows:

Model	Hook Type	Voltage(V)	Power(W)	Capacity(kg)	Lifting Speed(m/min.)	Lifting Height(m)	Qty/CTN	Packing Size(cm)	N.W./G.W (kG)
PA200	Single hook	AC220V /230V 50Hz/ 60Hz	510	100	10	12	2	39*31*25	21/22
	Double hook			200	5	6
PA300	Single hook		600	150	10	12		39*31*25	22
	Double hook			300	5	6			23
PA400	Single hook		980	200	10	12		45*34*27.5	30.5
	Double hook			400	5	6			32.5
PA500	Single hook		1000	250	10	12		45*34*27.5	31
	Double hook			500	5	6			33
PA600	Single hook		1200	300	10	12		45*34*27.5	32.6
	Double hook			600	5	6			35
PA800	Single hook		1300	400	10	12		45*34*27.5	35
	Double hook			800	5	6			37.5
PA1000	Single hook		1600	500	10	12	1	57*26*32	30
	Double hook			1000	5	6			31

Model	PA200/PA300/PA400/PA500/PA600/PA800/PA1000/PA1200
Voltage	220V/230V 50HZ
Motor power	510W/510W/600/980/1000/1200/1300/1600
Wire rope size	3.05/3.05/3.05/3.8/4.2/4.5/5.1/5.6mm
Motor	100% pure copper wire.
Hook	Anti-rotate type hook with one pulley
Controller	With the emergency knob
The plug	Customization

Product detail
Factoty spare parts pics:
