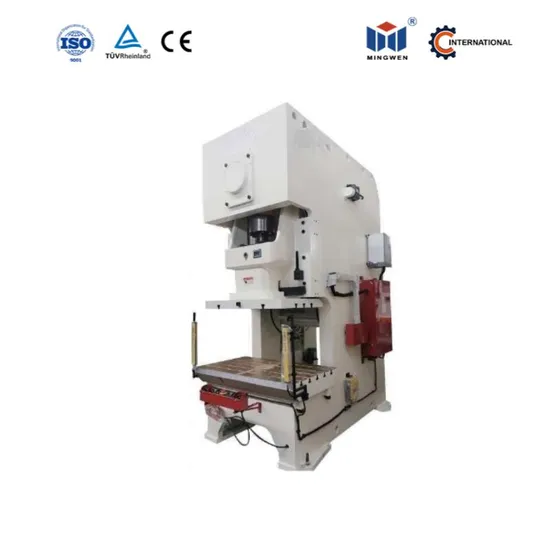

C-Frame Single Punching Point Multi Connecting Rod Forging Machine

Product Description

Product Description

Parameters

Specifications		Unit	JH24-80		JH24-125		JH24-160		JH24-200
Type			H	S	H	S	H	S	H	S
Nominal		kN	800		1250		1600		2000
Nominal Stroke		mm	5	5	6	6	6	6	6	6
Slide Stroke		mm	100	160	110	180	130	200	150	220
Side Strokes Per Minute	Fixed	min-1	80	60	70	50	60	45	50	35
	Variable	min-	55-95	40-75	50-85	35-60	35-70	30-55	35-60	30-45
Max Die Set Height		mm	350	320	385	350	435	400	485	450
Die Height Adjustment		mm	80		90		100		110
Throat Depth		mm	310		350		400		430
Distance Between Uprights		mm	625		700		760		990
Slide Bottom Size	LxR	mm	540		620		700		880
	FxB	mm	460		520		580		650
Shank Hole Size	Dia	mm	50		70		70		70
	Depth	mm	70		80		100		100
Bolster Size	LxR	mm	1000		1150		1200		1450
	FxB	mm	600		680		760		840
Blanking Hole Diameter		mm	180		200		220		240
Bolster Thickness		mm	140		155		165		180
Bolster Surface Height		mm	850		845		895		1000
Overall Dimensions	FxB	mm	1765		2040		2305		2600
	LxR	mm	1250		1360		1460		1620
	H	mm	2725		3035		3215		3800
Distance Between Foundation Bolts	FxB	mm	1210		1430		1665		2020
	LxR	mm	950		1090		1200		1420
Motor	Powe	kW	7.5		11		15		18.5
Press Pressure		Mpa	0.5

Specifications		Unit	H24-250		JH24-315
Type			H	S	H	S
Nominal		kN	2500		3150
Nominal Stroke		mm	6.5	6.5	7	7
Slide Stroke		mm	160	220	160	220
Slide Strokes Per Minute	Fixed	min-1	45	30	45	30
	Variable	min-1	30-55	20-35	30-55	20-35
Max Die Set Height		mm	530	500	530	500
Die Height Adjustment		mm	120		120
Throat Depth		mm	450		450
Distance Between Uprights		mm	1050		1090
Slide Bottom Size	LxR	mm	950		950
	FxB	mm	700		700
Shank Hole Size	Dia	mm	70		70
	Depth	mm	130		130
Bolster Size	LxR	mm	1600		1600
	FxB	mm	880		880
Blanking Hole Diameter		mm	240		240
Bolster Thickness		mm	190		190
Bolster Surface Height		mm	1000		1000
Overall Dimensions	FxB	mm	2660		2720
	LxR	mm	1710		1750
	H	mm	3850		3850
Distance Between Foundation Bolts	FxB	mm	2100		2140
	LxR	mm	1530		1570
Motor	Power	kW	22		30
Press Pressure		Mpa	0.5

Supporting Equipment
Standard configuration & Optimizing configuration

Standard configuration

Optimizing configuration

· Wet clutch(World) · Hydraulic overload protecting pump ·Auto lubrication system · Manual lubrication system · Balance cylinders for slide and upperdie · Joint for miss-feeding · Touch screer · Electronic crankshaft angle indicator · Cam controller · Die height adjusted motor · PLC:Programmable logical controller ·Air source quick connector · ShockAbsorption Pads · Working lamp · Airblowing · Second degree drop · Preset counter(Touch screen display)

· Dryclutch · Foot pedal · Frequency control · Top stripping device forslider · Pneumatic die cushion apparatus · Die quick change device ·Automatic feeding the output shaft · Lightcurtain Protection

Features
· Multi-connecting rods transmission and featured byslow processing and quick return;
· The production efficiency can be increased by 30% or so compared with common crank punch press;
· High-precision, satisfying JIS primary standard;
· High-rigidity welding main body;
· High-precision six-face long guide rail;
· High-sensitivity hydraumatic overload protection;

Our Advantages
High-quality steel plate welded body,all processed by tempering and shot blasting,with good rigidity and stable precision;
Longituinally set bent axle,with compact structure,and the bent axle is processed by rolling,with good smoothness and flexible rotation; rectangle six-face lengthened guide rail,the guide surface is bronze panel and with high guiding precision;
· Air-operated double-balanced cylinder,the balance sliding block and upper die weight can reduce the impact and noise,eliminate the gap between the connecting rod and the sliding block,reduce the impact and abrasion of loaded parts and enhance the molding precision ofthe parts;
· The whole machine has adopted imported PLC centralized control,and imported safety double valve control is applied to the gas circuit,to realize inch,single and continuous punching;
· The key parts such as slider, guide rail, worktable plate, connecting rod and flywheel are all cast with resin sand. Compared with common clay sand casting, the surface roughness and dimensional accuracy are improved effectively;
· Electrical control is applied to die-filling height for JH21 products of 60 tons or above;high-quality configuration,and all the key
components and parts such as pneumatic components,electrical apparatus elements,sealing elements,and buttons are imported.

Company Profile
OEM/ODM
Our company has our own unique team of designers, for different types from OEM &ODM customer's needs!
We are with more than 10 years' experience in OEM/ODM service, including particular product function development, particular package, sample developing etc.
R&D
Our company has set up the R&D software department and R&D machinery department.
We have a strong R & D team from Germany, Japan and China.
We could do the design new machine for you with a unique software and case of your base at your special request.





After Sales Service
We promise term of warranty for mechanical part is one year and warranty for electrical part is half a year. Marketing services will be easy and quick for you.
FAQ
How to maintain the machine?

Regular Inspections:
Conduct routine inspections of the machine to check for any visible wear, damage, or loose components. Inspect electrical connections, hydraulic hoses, and pneumatic lines for signs of wear, leaks, or damage. Lubrication:
Lubricate all moving parts and components according to the manufacturer's recommendations. Use the appropriate lubricants to prevent excessive friction and wear. Cleaning:
Keep the machine clean from dust, debris, and contaminants that can affect its performance.Remove swarf and metal chips regularly from the machine's working area.
Alignment and Calibration:
Check and adjust the alignment of the machine components to ensure accurate forging.Calibrate any measurement devices or sensors as needed. Safety Systems:
Ensure that all safety systems, such as emergency stops and interlocks, are functioning correctly. Test safety features periodically to verify their effectiveness. Tool Maintenance:
Inspect forging tools (dies, punches, etc.) for wear and damage. Replace or recondition them as necessary.Properly store and maintain spare tooling to minimize downtime. Hydraulic and Pneumatic Systems:
Inspect hydraulic and pneumatic systems for leaks, and repair or replace damaged components.Check pressure settings and adjust them as needed. Electrical Components:
Inspect and tighten electrical connections, and replace any worn or damaged wires.Keep control panels and electrical enclosures clean and free of dust. Training and Documentation:
Ensure that machine operators and maintenance personnel are properly trained in the machine's operation and maintenance procedures.Keep maintenance records, including inspection schedules and repairs made. Emergency Procedures:
Develop and communicate emergency procedures for dealing with unexpected machine failures or accidents. Consult the Manufacturer's Guidelines:
Always refer to the manufacturer's maintenance guidelines and recommendations for your specific forging machine. They may provide detailed instructions and schedules for maintenance. Professional Service:
For complex maintenance tasks or repairs, consult with qualified technicians or the machine manufacturer's service department. Regular and proactive maintenance is crucial for keeping a forging machine operational and safe. Following a structured maintenance plan will help prevent breakdowns, reduce downtime, and extend the machine's service life.
