ISO20&40 Feet Automatic Container Spreader

Product Description

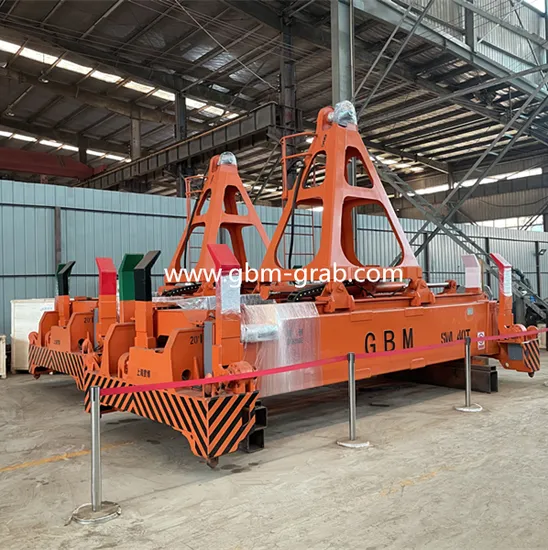

GBM Electric Hydraulic Telescoping Container Spreader for loading 20ft and 40ft container
Hydraulic telescopic spreader is specially designed for quayside container bridge crane and rail gantry cranes.It is suitable to both ISO 20FT and 40FT containers and its lifting capacity is 40T.Container spreader is driven by hydraulic system.Its automatic working provides high efficiency,especially for large container loading and unloading yard.
It is suitable to both ISO 20Ft and 40Ft containers and its lifting capacity is 40T.
Container spreader is driven by hydraulic system. Its automatic working provides high efficiency, especially for large container loading and unloading yard.
Parameter

For ISO standard 20/40ft container		control voltage	AC 220V(optional)
Rated lifting load	41T	Total power	≤8kw
Allowable load eccentricity	±10%	Protection class	IP55
Load of lifting lugs at four coners	10T*4	Operating pressure of the system	100 bar
Dead weight	10T	Ambient temperature	20ºC-+45ºC
Expansion time(20-40)	~30s	Twistlock mode	ISO floating twistlock, driven by oil cylinder
Twistlock rotation(90°)	~1s	Telescpoic mode	driven by a hydraulic motor and reduction gear box connected to en endless chain
Power Voltage/Frequency	AC 380V(3P/50HZ)	Flipper device	Knock-down flippers
Application	QC, RMG,RTG,Portal crane, Jib crane

Our Services: Act as a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customised project for clients.
b: Design and manufcture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a:Assist clients to prepare for the construction scheme.
b:Install and debug equipment.
c:Train the first-lin operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f:Provide techical exchanging.

FAQ:
Before you send us an inquiry about container spreader, please let us know some information as following:
What is lifting capacity of spreader?
What is type of spreader? Semi automatic container spreader, New I type spreader, motor spreader, hydraulic telescopic spreader or electro telescopic spreader?
If what you need is telescopic spreader, please confirm it is hydraulic telescopic or electric telescopic?
What is the using temperature of spreader?
Will you match a rotator with the telescopic spreader?
Thanks very much for your kindly cooperation!
