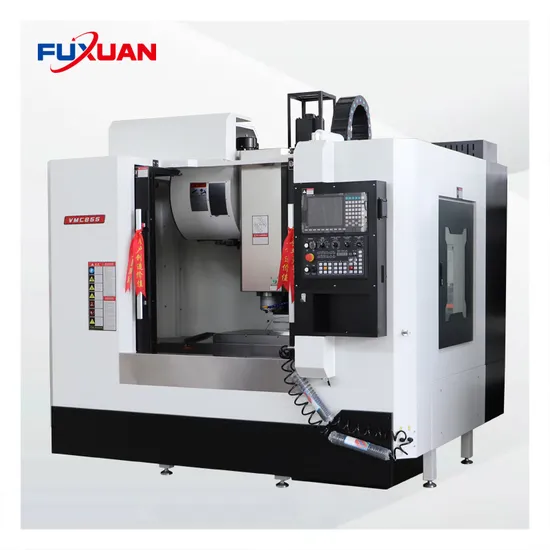

Vmc855 High-Speed Machining Center CNC Lathe Vertical Processing Machine with CNC Controller 4-Axis

Product Description

High-speed machining center cnc lathe vertical processing machine with cnc controller 4-axis Product Description
Features: Taiwan spindle Germany R+W coupling Taiwan ball screw and locking nut Automatic lubrication system Taiwan pressure cylinder Chip conveyor at optional Japanese NSK bearing High quality resin sand Product Parameters

specifications	unit	VMC855
Table size	mm	1000x550
Max.table load	mm	500
X axis travel	mm	850
Y axis travel	mm	550
Z axis travel	mm	550
Distance between spindle center and column surface	mm	571
Distance between spindle nose and table surface	mm	100-650
T slot		3-18*90
Spindle taper	mm	BT40
Max. spindle speed	r/min	8000(10000 optional)
Main motor power	kw	7.5
X/Y/Z axis servo motor torque	N.M	15/15/23
X/Y/Z motor connection		direct
X/Y/Z guide rail form		3 axis linear guide rail
Automatic tools changer		24 arm type
X/Y/Z axis rapid traverse	M/min	32/32/32
Cutting feed speed	M/min	10
Position accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003

Detailed Photos
Our Advantages
Dear customer, by choosing our CNC machining center, you will receive:
1.-High precision machining: cutting-edge CNC technology ensures sub micron level accuracy and meets strict industry requirements.
2.-Efficient productivity: Rapid processing speed and intelligent management system greatly improve production efficiency and market responsiveness.
3.-Reliable and stable: Durable materials and strict quality control ensure long-term stable operation and reduce maintenance costs.
4.-Flexible adaptability: Diversified processing paths and tool configurations to adapt to various materials and personalized needs.
5.-Green environmental protection: energy-saving design and emission reduction measures help achieve environmental goals and promote sustainable development.
Our CNC machining center is your ideal choice for improving manufacturing quality, efficiency, and sustainability. Looking forward to working with you to create excellence together.
Company Profile
Shandong Focus Machinery Co., Ltd. Shandong Focus Machinery Co., Ltd. is located at No. 988, Xingteng East Road, Economicand Technological Development Zone,Tengzhou City, Shandong Province, China. lt hasmany years of experience in exporting machinery and tools. The main exported equip.ment includes: machining centers, CNC milling machines, CNC lathes, universal millingmachines, turret milling machines,rotary head milling machines, drilling machines, sawingmachines, etc. We have won a good reputation from customers all over the world with our high qualityand first-class after-sales service. In order to ensure quality, we carefully select raw material suppliers, use advanced manu-facturing and processing equipment,improve production processes, and test machinetool performance in multiple dimensions. We keep in mind that only hiah-quality machinetool equipment and tools, the most competitive prices, and perfect after-sales service arewhat customers need most. So wehave always abided by it. FAQ
Q1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . Q2: Where is our factory located? How can I visit there? A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone, Tengzhou City, Shandong Province, China. Q3. What is your trade terms? A : FOB, CFR and CIF all acceptable. Q4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the machine, we will send machine photo and video for you to confirm. Q5: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) Q6.the warranty? The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for you within 48 hours.
