63mm 12V 24V 36V 48V to 220V High Torque Permanent Magnet Brush DC Motor 12 24 36 48 Volt 50W 100W 150W 200W Pm Brushed Planetary Worm Gear Electric Motor
| US$8.00-35.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
63zyt series
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Structure and Working Principle
Brush
Certification
ISO9001, Ce, RoHS
Brand
Smart Automation
Voltage
12V 24V Upto 230VDC
Power
Customized 10W Upto 300W
Transport Package
Standard Export Package
Specification
size 63mm
Trademark
OEM ODM
Origin
China
HS Code
8501310000
Production Capacity
10000 PCS Per Month
Product Description
Below are only some typical models.
For more information or a customed motor, Pls contact us.
Option for Electric Brake, Planetary Gearbox, Worm Gearbox, Optical Encoder Integrated

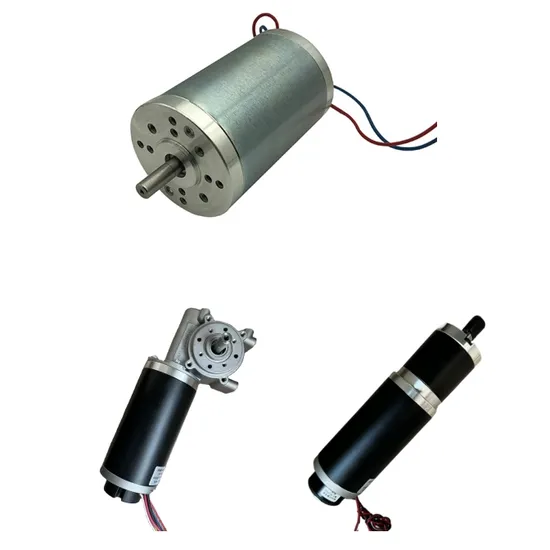

Permanent Magnet Brush DC Motor 63ZYT01C
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP40 IP54 IP66
Insulation class: F, operating temperature range:-40ºC~+140ºC
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
