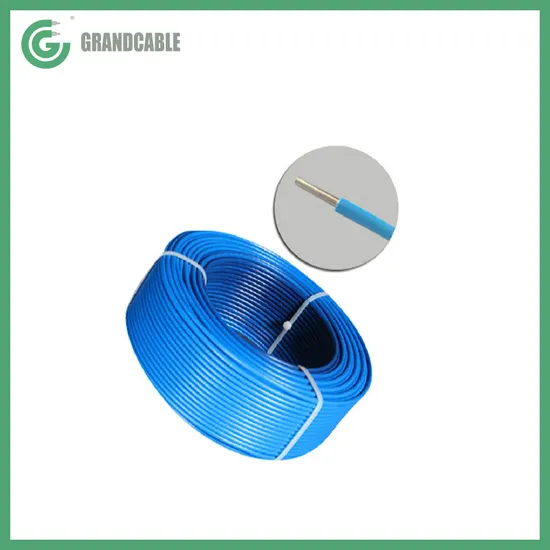

Aluminum Conductor Single Core PVC Insulated Electrical Building Wire with 1c 6mm2 BS6746 0.6/1kV

Product Description

Aluminum Conductor Single Core PVC Insulated Electrical Building Wire with 1c 6mm2 BS6746 0.6/1kV
CONDUCTOR, PVC,AL., 1C, 2.5MMP (7/.044")
Application
Suitable for power, lighting circuits and building wiring. The cable is intended for use in the indoor fixed installation, distribution in conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Applicable Standards
BS6360:1991, BS6746:1990, BS6005:2000
Dimension Characteristics

Standard		BS6360:1991, BS6746:1990, BS6005:2000
Condutor	Material	H68 Aluminium (Class 2)
	Shape of Composition	Circular Stranded
	No. of wires	7
Insulation	Material	PVC TI1 Compound
	Nom. thickness,mm	0.80
	Min.thickness,mm	0.62
	Diameter,mm	4.80
Approx. of cable weight, kg/km		34.66
Max. CR @ 20°C (ohm/km		4.61

Testing Facilities:
With professional rich experience in overseas business, Grand Cable is able to supply cables up to 500kV for global projects. Grand Cable covers an area of 130,000 square meters, owns total assets of 100 million CNY and more than 500 staff members.
Grand Cable is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises, the Private Technology Enterprises, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and ISO 45001 Occupational Health and Safety Management System Certificate. With more than 300 sets of first-class domestic and imported manufacture and test equipment,
Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables (LV/HV/MV/EHV), Special Cables.
Today, Grand Cable is a fast growing global supplier, our products can be manufactured in compliance with different standards, including International Electrical Standard (IEC), Australia and New Zealand Standard (AS/NZS), German Standard (VDE DIN), British Standard (BS), European Standard (EN/CENELEC HD), French Standard (NF C), Canadian Standard (CAN/CSA), American Standard (ICEA/ASTM/ANSI/UL), Russian Standard (GOST), Argentina Standard (IRAM), Spanish Standard (UNE), Indonesian Standard (SNI), Indian Standard (IS), Japanese Standard (JCS/JIS), Chilean Standard (NCH), South African Standard (SANS/PIESA), etc.
Grand Cable has been identified as High-Tech products, Brand-Name products and Well-Known Trademark. Our products cover electric power, petrifaction, railway, construction, metallurgical and appliance industries, widely used in construction of global urban & rural power grid, for electricity generation, transmission and distribution projects.
Grand Cable always adheres to the service concept "Lighting Your World Up!", committing to excellence and professionalism for global customers
Q: How long does it take get my inquiry replied? A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
