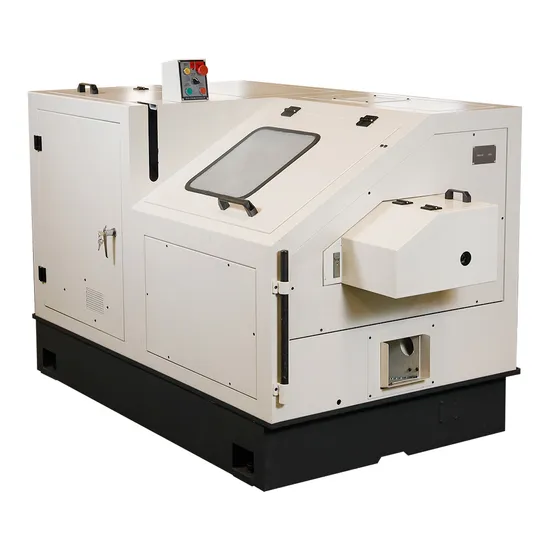

Drywall Screw Cold Forming Machine

Drywall Screw Cold Forming Machine

US$7,970.00-10,860.00 1 Piece (MOQ)

Basic Info.

Model NO.
JYX15
Forging Forming Method
Mold Forging
Power Source
Electric
Feature
Precision
Certification
CE
Warranty
12 Months
Customized
Customized
Advantage
Quality Guarantee
Condition
New
Transport Package
Wooden Box, Wooden Plate
Specification
M5
Trademark
PROLU
Origin
China
HS Code
8462109000
Production Capacity
1000sets/Year

Product Description

PROLU Screw Cold Heading Machine(380V)
Item 1 2 3 4 5 6
Model JYX15-30GA JYX15-37G JYX15-50G JYX15-63G JYX15-76G JYX15-100G
Max.blank diameter
(mm)
2.3-5.2
Max.blank length
(mm)
25 40 55 65 80 110
RPM
(pcs/min)
260 220 200 155 140 105
Main die diameter
(mm)
34.5×55 34.5×55 34.5×67 34.5×70 34.5×90 34.5×110
1st punch die
(mm)
27×70 31×73 31×90.5
2nd punch die
(mm)
25×70 31×73 31×98.8
Cut-off die
(mm)
19×35
Cutter
(mm)
10×32×63
Motor power
(KW)(4HP)
4 3 2.2
Oil pump power
(KW)(1/4HP)
0.33
Machine size
(M³)
2.4×1.2×1.45 2.1×1.05×1.1 2.1×1.05×1.1 2.15×1.1×1.1 2.15×1.1×1.1 2.3×1.1×1.1
2.25×1.2×1.45 2.25×1.2×1.45 2.25×1.2×1.45 2.25×1.2×1.45 2.5×1.2×1.45
Weight
(KG)
2300 2200 2200 2250 2250 2350
2300 2300 2350 2350 2450
Attach:1. Machine including wire straightener and wire stand.
2. Protection:half or full.3. Need auto checker, conveyor or inverter, please consult.
Machine Feature:
*Vertical sliding plate,widen and thicken, bigger size . entirety quench. Slide stabilization.
*Sliding block, cast alloy steel
*Mould pedestal, high processing accuracy.
*Pull rod,spring pedestal,straight line pedestal,knife rest pedestal, precision cast steel
*Install sliding block baseplate,shock absorption,antiwear,lengthen using life.
*Oil line reasonable layout, lubricate all parts.
*Curve sliding plate, entirety, without insert.
*Crankshaft,high strength and toughness,antiwear alloy steel,widen and thicken.
*Lifting transmission plate,cutting by laser cutting machine.impact toughness well, high strength.
*Second axle cam, control the accuracy 3%-5% millimeter
*Auto stop without lubricating oil
*Taiwan Electrical motor
*Main electric circuit: French brand

Company Profile:
Shandong Prolu Machinery Technology Co.,Ltd is the international trading company of shunda and yuanxu,behind steel ball cold heading machine and screw cold heading machine of ProLu,is the"cold forming " engineering mastery of 21 years of shunda and yuanxu.
Our development basic on continuing research of the productions,high-quality system,and raw material supply chin system. All machines and spare parts are 100% qualified be test by JinanBureau of quality and technical supervision,all meet the china and CE standard.
We have 90% market share in china with steel ball cold heading machine,and screw cold heading machine be sold in china in 5 years.
---Total 16000 square meter,workshop 10000 square meter, office area 1000 square meter,4 spare parts warehouses, 7 workshops
---R&D team:27 engineers,spare parts process team:80 workers and machine assembly team:40 workers
---30 lathe,12 high precision CNC lathe,17 middle-size CNC center of lathe,2 large-size CNC center of lathe
---95% self-produce spare parts of steel ball and screw cold heading machine,independent research,
high-precision process,quality guarantee
