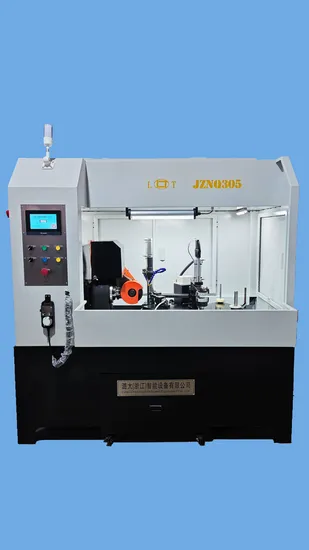

Saw Blade Sharpening Machine, Mechanical Arm Front Angle Saw Grinder
Basic Info.
Model NO.
JZNQ305
Type
Tool Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Condition
New
Blade Diameter
Ø110—Ø305mm
Range of Tooth Pitch
≤50mm
Applicable Tooth Thickness
4mm
Front Angle
5-25°
Grinding Wheel Swing Angle
±45°
Grinding Wheel Stroke
0-40mm
Grinding Wheel Speed
5500r/Min
Working Air Pressure
0.4-0.6MPa
Supply Voltage
AC380V50Hz
Weight
1200kg
Transport Package
Wooden Crate
Specification
1750× 1100× 1800mm
Trademark
Lutai
Origin
China
Production Capacity
100set/Year
Packaging & Delivery
Package Size
183.00cm * 118.00cm * 190.00cm
Package Gross Weight
1230.000kg
Product Description
Machine features1. This machine is a specialized automated equipment for grinding the front angle of alloy circular saw blades.
2. The utility model adopts a manipulator upper and lower saw blades, which are simple and convenient to operate, and one person can operate multiple devices.
3. Adopt PLC system control, Servo Motor Drive, Operation Program design is simple and easy to understand.
4.The host part is controlled by the servo, which drives the shifting teeth and can process the combined tooth pitch.
5.The machine offers a variety of grinding processes and comes with a fast grinding mode.
6.This type of manipulator adopts motor position and is equipped with single-chip and double-chip detection function.
7.This model is equipped with hand-held pulse handwheel, which is more convenient to adjust the machine.
8.The machine is equipped with automatic oil supply and lubrication system, which can effectively improve the service life of linear guide slider.
Technical parameter
| Blade Diameter | Ø110-Ø305 | mm | ||
| Manual diameter | Ø500 | mm | ||
| Range of tooth pitch | ≤50 | mm | ||
| Applicable tooth thickness | 4 | mm | ||
| Front angle | 5-25 | ° | ||
| Grinding wheel swing angle | ±45 | ° | ||
| Grinding wheel stroke | 0-40 | mm | ||
| Grinding wheel speed | 5500 | r/min | ||
| Working air pressure | 0.4-0.6 | MPa | ||
| Supply voltage | AC380V50Hz | V | ||
| Weight | 1200 | Kg | ||
| Machine tool dimensions | 1750×1100×1800 | mm | ||
