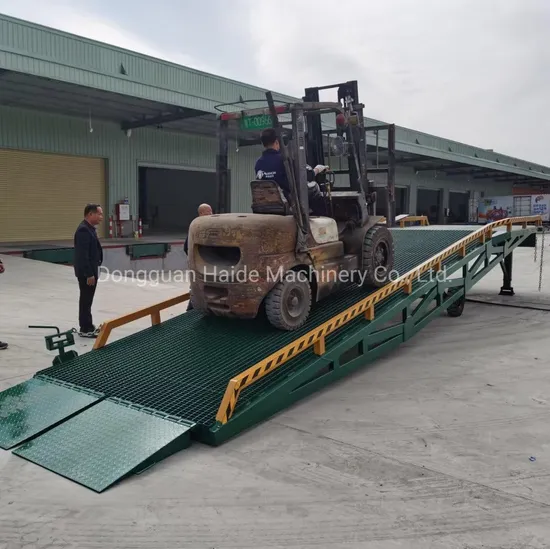

Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp

Product Description

CE-Approved 10Ton/15Ton/20Ton Mobile Container Loading Ramp On Sale
Specification:

Width	2000mm
Total length	11050mm
Capacity	10ton,15ton,20ton
Adjust range	1200~1700mm
Material	Q235B(SGC490)
Manual pump	Import from Italy, brand is " Oiltec"
Ramp weight	3200kg
Warranty	1 year for hydraulic system, 5 years for steel structure
Color	Optional
Tyre	Solid tyre
CE No.	DGS12082902

Description:
1, We have many years experience in designing and customize the dock ramp as per customer's requirement.
2, Two moveabble lip design facilitate the free lateral floating when the truck box floor move up and down.
3, Two hydraulic retractable leg help to sustain the passage of heavy load during operation.
4, Two solid tyres provide excellent traction without worry of puncture.
5, The steel structure has been sand-blasted and the painting has been baked under 170ºC temperature,
ensuring the maximum painting adherence and be free of rusting.
6, The end bracket enable our dock ramp to be towable by forklift.


7, Capacity: 10Ton ,15ton, 20ton.
8, Steel grating on the slope floor prevent the forklift from slipping back during operation..
9, Top flat table is made of anti-skid steel plate.
10, We use Italy "Oiltec" hydraulic pump(optional) and it enable our yard ramp to be operated manually
with great ease, eliminating the need for electrical operation.

11, Tapered lip edge provide a smooth transition between container and ramp.
12, Two safety chain secure the fixing between ramp and truck box.

13, Hydraulic pump adjust the ramp to the desired position.
14, Guard rail(curb) provide safety and direction for forklift movement.
15, Can be 3-side loading or 2-side loading by adding lip on sides.
16, Two rubber bumper absorb the shock between truck box and ramp.
17, The dimension for every part can be customized to suit to actual demand.
