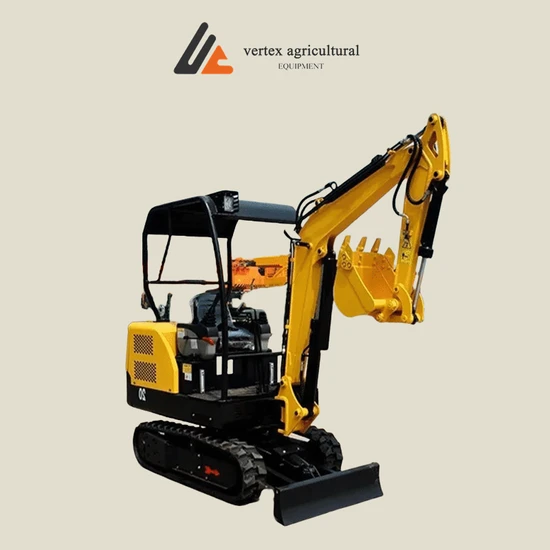

Compact Mini Excavator with Hydraulic Pump for Quick Digging Projects

Product Description

The small excavator stands as a vital pillar in the realm of construction machinery, embodying a rugged and reliable machine with a weight class of 6 tons or less. Meticulously crafted to deliver extraordinary precision and unmatched efficiency, this adaptable piece of equipment features key operative components such as the boom, bucket rod, and bucket. Together, these elements bestow upon the excavator the power to seamlessly perform an array of tasks including excavation, loading, and leveling. With a deft touch and agility, the standard bucket capacity ranges from 0.01 to 0.3 cubic meters, ensuring maximum performance across a myriad of applications.
Product Parameters

1	Name	Crawler excavator
2	Model	12
3	Operation weight	740KG
4	Engine(customized)	KOOP/B&S
5	Power	7.6kw/13.5HP
6	Hydraulic cylinder,pump,valve(customized)	Warranty 1 years
7	Bucket capacity	0.03CBM
8	Rotation speed	11r/min
9	Overall dimension(L*W*H)	2870mm*950mm*2030mm/2285mm(With shed)
10	Crawler grounding length	1200mm
11	Crawler width	180mm
12	Max digging height	2580mm
13	Max discharge height	1745mm
14	Max digging depth	1700mm
15	Max digging radius	3030mm
16	Mini turning radius	1290mm
17	Platform clearance to ground	370mm
18	Swing angle	360°
19	Climbing gradient	30°
20	Bulldozer Max depth	170mm
21	Bulldozer Max raising height	240mm
22	Walking speed	2.5km/h
23	Bucket digging force	11.5KN
24	Hydraulic system press	16MPa

Product characteristics

Base plate The chassis design of small excavators is relatively compact, and most of them use track type or tire type. Tracked chassis can provide better stability and traction, suitable for a variety of complex terrain, such as muddy work sites, soft soil, etc. The wheeled chassis has higher maneuverability and moves faster on flatter roads, making it suitable for short-distance transfers in environments such as urban roads.

Working device The structural strength of the boom and bucket rod can meet the needs of small excavation tasks. The hydraulic system can precisely control the action of the working device to achieve flexible digging Angle and depth. For example, when digging a pipe, the operator can control the hydraulic system so that the bucket can dig at the right Angle to avoid damaging the underground pipe. Buckets are also available in a variety of shapes and sizes. There are sharp-toothed buckets for digging hard soil, and flat-mouth buckets for loading loose materials.

cab The cab design of small excavators pays attention to comfort and operability. Although the interior space is relatively small, the layout is reasonable, and the seats can be adjusted to facilitate the use of operators of different sizes. The ergonomic placement of the handle and instrument panel allows the operator to easily operate a variety of control buttons and joysticks. The cab of some high-end small excavators is also equipped with air conditioning, radio and other equipment to improve the working comfort of the operator.

Product System

Engine type Small excavators generally use diesel engines or electric engines. The diesel engine has a high torque and power output, which can adapt to more heavy excavation work. And diesel engine fuel storage is relatively convenient, do not need frequent refueling. Electric engines have the advantages of environmental protection and low noise, and are suitable for use in urban environments or indoor places with high noise and emission requirements.

Dynamic performance The engine power of small excavators is usually between 10-50 kW, and this power range can meet the needs of excavation, loading and other operations in small projects. For example, in a small garden renovation project, its power is enough to dig flower beds, carry flower soil, etc.

Product application

Building construction In small construction projects, such as the foundation excavation of rural self-built houses, and the construction waste removal after the demolition of old walls during interior decoration. Small excavators can enter the interior through narrow passageways and carry out precise digging and cleaning operations with their flexible working devices.

Municipal engineering Used for urban road maintenance and renovation. For example, digging trenches to bury streetlight cables and repairing sidewalks. It can quickly complete excavation work on a small scale without affecting urban traffic.

Garden landscape In garden construction, small excavators can be used to dig artificial lakes, build rockeries, and dig tree pits when planting large trees. Its fine operation ability can avoid damaging other landscape facilities in the garden.

Agricultural field Helping farmers dig irrigation ditches and clean up manure piles on farms. In some small orchards, it can also be used to dig fertilizer pits to facilitate fertilization.

The global demand for small excavators is on a dynamic upward trajectory. In developed regions such as Europe and the United States, there is a flourishing need for this machinery, spurred by infrastructure maintenance and transformation, alongside small-scale engineering and landscaping projects. The compact and nimble nature of small excavators makes them exceptionally suited to meet the varied demands of these endeavors. Additionally, in emerging economies, economic expansion and infrastructure enhancements are propelling a significant increase in demand for these machines. Notably, in the first half of 2024, Qingzhou Vertex Agricultural Equipment Co., Ltd. reported an impressive 70% surge in exports, highlighted by a notable rise in acquisitions from individual overseas users. FAQ

1. How long is the delivery time? According to your size and system, the delivery time is usually 15-60days. 2. Can you supply sample? Small parts can be supplied, but you should pay the express cost. 3. Can your company supply design? Our company can give g design according to your land and plan after deposit. And we can give simple drawing before signing contract. 4. How to install ? Firstly we prepare the material and send the material to your city. After your customs clearing, we send 2-4 engineers or all workers to guide to install. If you want to save money, we only send engineers, and you match local workers. If you think it is hard to build the greenhouse, we also can send engineers and workers to install for you. 5. When installing, what cost should we pay? Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication
