Small Lab Ultrasonic Homogenizer Mixer Equipment Vacuum Homogenizer Machine
| US$9,000.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
D-150
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Conical
Stirring Type
Spiral
Type
Ultrasonic Homogenizer
Warranty
1 year
Working
High Speed Mixer
Maximum Capacity
12 L/H
Duty Ratio (%)
0.1-99.9 %
Features
with New Software, Central Micrcomputer Centralized
Display
TFT Touch Screen Display
Power Supply
220/110 VAC 50 Hz/60 Hz
Maximum Design Pressure
1500 Bar/150 MPa/21750 PS
Minimum Capacity
30 Ml
Motor Power
1.5 Kw/380 VAC/50 Hz
Dimensions
L800xw460xh450 mm
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Woodern Carton
Trademark
Drawell
Origin
China
Production Capacity
300piece/Month
Product Description

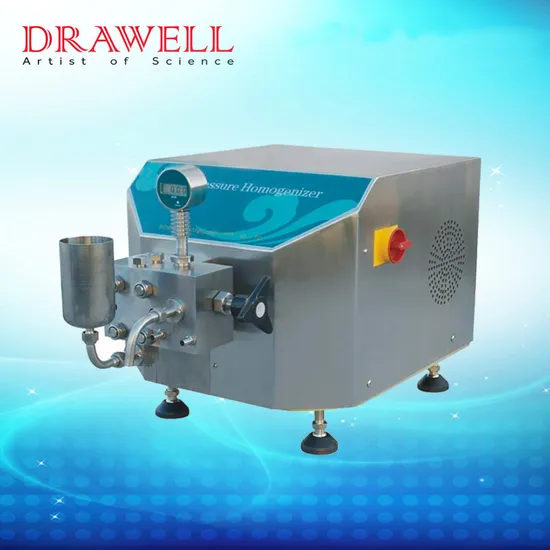

Product Description Ultrasonic HomogenizerDW-150 Drawell High Pressure Homogenizer Laboratory Ultrasonic Homogenizer Laboratory High-Pressure Homogenizer DW-150 It is used for dairy, food & beverage, fruit juice, pharmaceutical, biotechnology and other industries. The machine has a built-in circulatory cooling system. A secondary homogeneous module and a homogeneous valve for your different applications. Specifications: Maximum working pressure: 1200 bar/120 Mpa/17400 psi Maximum design pressure: 1500 bar/150 Mpa/21750 psi Maximum viscosity of products: 2000cp Maximum capacity: 12 L/h Minimum capacity: 30 ml Cooling: Built-in cooler Suction times per minute: about 140times Material largest feed particle size: lOOum Maximum product temperature: 90 °C Motor Power: 1.5 KW/380 VAC/50 Hz Dimensions: L800×W460×H450 mm Weight: 120 Kg Comparison of different models:
| DW-1A | High Pressure Homogenizer | 50ml/time, Continuous sampling, Maximum crushing pressure 256MPa |
| DW-150 | Experimental High Pressure Homogenizer | Max Working Pressure:1500bar, Max processing capacity:12L/h |
| Drawell-D207A | Ultra High Pressure Homogenizer | 1) The maximum working pressure 1800bar / 180Mpa / 26100psi pressure adjustable 2) The maximum design pressure is 2070bar / 207Mpa / 30015psi 3) Minimum processing capacity 15 L / H (250ml / min) 4) The maximum processing capacity of 15ml |
