Tuhe Mobile Yard Ramp for Loading and Unloading

Product Description

Product Description
YARD RAMP
The mobile boarding bridge is an auxiliary equipment for loading and unloading cargo used in conjunction with forklift trucks. The height of the car can be adjusted according to the height of the carriaqe. Forklift trucks can directly drive into the carriage through this equipment to carry out bulk loading and unloading of cargo. Only single person operation is needed lo achieve rapid loading and unloading of cargo. It enables enterprises to reduce a large number of labor, improve work efficiency, and obtain greater economic benefits.
The special diamond-shaped grid plate is used on the table with reliable strenath.which con ensure long-term use without deformation. Its diamond mesh structure fully guarantees excellent anti-skid performance and makes forklift truck have better climbing and maneuverability. Even in rainy and snowy weather, normal use is quaranteed.The adjustable length of the cable chain can easily hook up the truck, so that the boarding bridqe and the truck are always closely connected.
The height adjustment of boarding bridge can be easily realized without external power supply by using hand-operated hydraulic pump as power.The brake pad can effectively prevent the boarding bridge from shifting during loading and unloading.

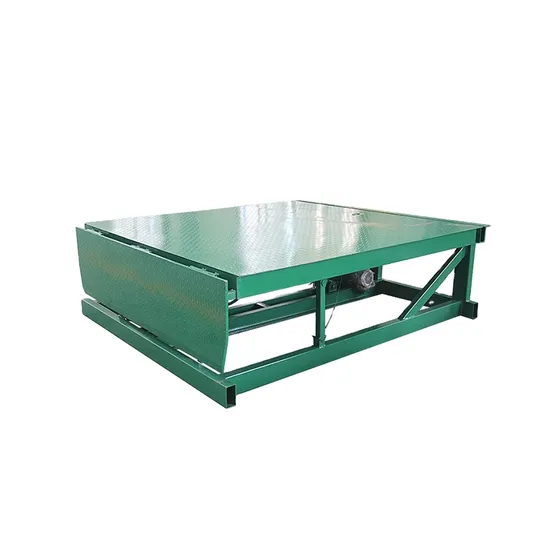

DOCK LEVELER
Hydraulic boarding bridge is a special auxiliary equipment to realize rapid loading and unloading of goods. Its height adjustment function enables a bridge to be erected between the truck and the warehouse platform Forklift trucks and other handling vehicles can directly drive into the truck to carry oul bulk loading and unloading of goods, which can be achieved by single operation.Full hydraulic drive, easy operation and reliable operation.The lip plate and the platform are connected by a whole long axis, which has high strength and good reliability.Imported monolithic modular hydraulic slation has good sealing performance and long service life.The design of high-strenglh U-shaped beam can ensure its high load and long-term operation without distortionThe anti-skid pattern steel plale is used to make the platform have good anti-skid performanceProtect the foot skirt on both sides to prevent the toes from accidental injury.
Product details
Specification

YARD RAMP
MODEL	LOAD(T)	DIMENSIONS	MAIN BEAM	SECONDARY BEAM	GUARDRAIL	STEEL PLATE	SOLID TIRE	CYLINDER	ADJUSTMENT OF EQUIPMENT
YDCQ-6	6	11100x2000x1100mm	160x80x4	100x50x3	40x60x3	3	600-9	Ф80xФ50	11000x18000
YDCQ-8	8	11100x2000x1100mm	160x80x4	100x50x4	40x60x3	3	600-9	Ф80xФ50	11000x18000
YDCQ-10	10	11100x2000x1100mm	160x80x5	120x60x4	40x60x3	4	600-9	Ф80xФ50	11000x18000
YDCQ-12	12	11400x2200x1101mm	200x100x5	120x60x5	40x60x3	5	700-9	Ф80xФ50	11000x18000
YDCQ-15	15	11400x2400x1102mm	250x100x6	160x80x5	40x60x3	6	700-9	Ф80xФ50	11000x18000
DOCK LEVELER
MODEL	LOAD(T)	PLATFORM SIZE	WORK GRADE	TRAVEL		POWER	PIT SIZE
				UPPER	LOWER		L	W	H
DCQ6-0.55	6	2000X2000mm	400mm	300mm	250mm	0.75kw	2080mm	2040mm	600mm
DCQ6-0.7	6	2500X2000mm	400mm	400mm	300mm	0.75kw	2580mm	2040mm	600mm
DCQ8-0.55	8	2000X2000mm	400mm	300mm	250mm	0.75kw	2080mm	2040mm	600mm
DCQ8-0.7	8	2500X2000mm	400mm	400mm	300mm	0.75kw	2580mm	2040mm	600mm
DCQ10-0.55	10	2000X2000mm	400mm	300mm	250mm	0.75kw	2080mm	2040mm	600mm
DCQ10-0.7	10	2500X2000mm	400mm	400mm	300mm	0.75kw	2580mm	2040mm	600mm

Company Profile
Jinan Tuhe is a domestic professional manufacturer of hydraulic lifting platforms, located in the "Hometown of China's Lifting Platform Manufacturing---Jiyang". We have a strong technical team, has developed a variety of hydraulic lifting platform products, has made a number of technical improvements, has a greater advantage in intelligence and reliability, and has applied for a number of technical patents, becoming a rising star in the industry. We independently developed and produced scissor lift series, aluminum alloy lift series, rail-type lifting platform, cylinder lift series and boarding bridges. Products are widely used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations, stadiums, overhead pipelines and other high-altitude equipment installation, maintenance, cleaning and other scenarios, and also used in lifting equipment maintenance, field power equipment maintenance, etc.
