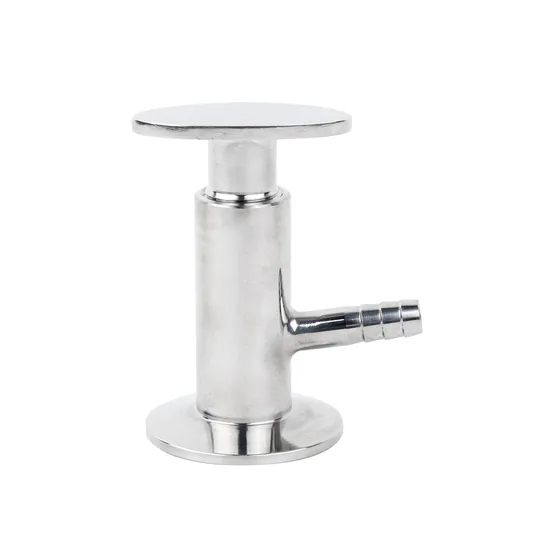

Stainless Steel Sanitary Aseptic Sampling Valve
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
AVM-SV0006
Connection Form
Clamp
Driving Mode
Manual
Channel
Angle Type
Temperature
-20degree Celsius~135degree Celsius
Standard
ISO, 3A, SGS, CE
Application
Industrial Usage, Water Industrial Usage, Household Usage
Pressure
Medium Pressure
Gasket
EPDM, Silicone, Viton, PTFE
Connection Ends
Threaded Triclamp, Welded
Material Quality
304, 304L, 316L (1.4301, 1.4307, 1.4404)
Transport Package
Shrink Wrap-Carton Case-Exporting Plywood Case
Specification
1/2", 3/4"
Trademark
AVM
Origin
Made-in-China
HS Code
848180409
Production Capacity
5000PCS/Month
Product Description
Stainless Steel SS316L Aseptic Sanitary Sampling Cock Sample ValveFeature:
1. 304 stainless steel,316L stainless steel
2. Silicone O-ring plus plunger to assure a leak proof connection
3. Surface finish polish to sanitary standards
4. Recommended usage in wineries
5. End connections available: clamp and NPT
6. Sizes available: 1" clamp and 3/8" NPT
Technical specification
| Material of Product Wetted | 316L (DIN-1.4404) |
| Material of Non-product Wetted | 304 (DIN-1.4301) |
| Seal material | PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2) |
| All seal materials comply with FDA 177.2600. | |
| Continuous working temperature | -20C +135C (EPDM) |
| Sterilization temperature | 150oC (Max 20min) |
| Working pressure | 0~10bar |
| Internal surface | Ra0.8μm |
| External surface | Shot blasting |
| Size | DN6/M4,DN8/M4,DN15/W9 |
Application
Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology
industries. As well as all other sectors requiring sanitary type equipment.
Aseptic sampling valve has two configurations.
1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective
and easy to operate.
2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated
by plastic hand wheel, and both angle and straight type structures are available.
