Programmable Fast Ramp High Low Temperature Chamber for Electronics Testing

Product Description

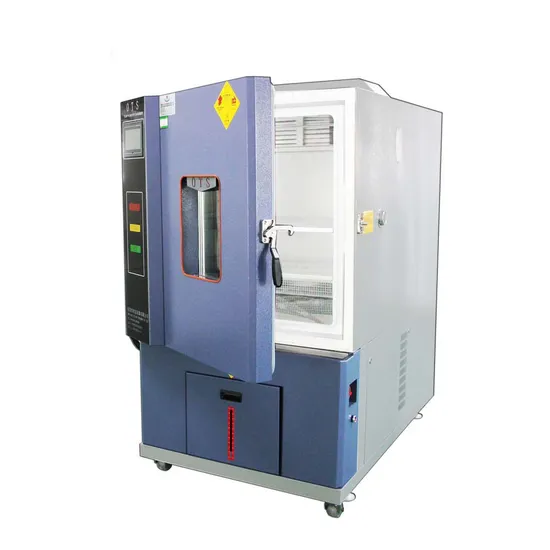

Laboratory Electronic Fast Change Rate High Low Temperature Test Machine
Product Descriptio
Electronics Lab Environmental Temperature Humidity Test Chamber is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.
The main technical parameters

Model #	XB-OTS-80	XB-OTS-150	XB-OTS-225	XB-OTS-408	XB-OTS-800	XB-OTS-1000
Internal Dimensions ( W x H x D cm)	40*50*40	50*60*50	60*75*50	80*85*60	100*100*80	100* 100 *100
Internal Volume (L)	80L	150L	225L	408L	800L	1000L
External Dimensions ( W x H x D cm)	90*143*100	100*153*110	110*168*110	130*178*120	150*193*140	150*193*160
Appro Weight (Kg)	190kg	260kg	320kg	420kg	540kg	570kg
Temperature Range	Temp Range from -70°C to 150°C(180°C) is available on request (A:-20°C B:-40°C C:-60°C D:-70°C )
Humidity Range	20%~98%R.H.(10%-98%R.H/5%~98%R.H) (5 ~ 10% is available on request)
Heat/cooling rate	About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )
Temperature humidity analytic accuracy / uniformity	≤±0.1°C; ≤±0.1%R.H./ ≤±1.0°C; ≤±3.0%R.H.is special optional condition.
Temperature humidity control accuracy / fluctuation	≤ ±1.0°C; ≤±2.0%R.H./ ≤±0.5°C; ≤±2.0%R.H.
Inner and outer materials	SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
Thermal Insulation Material	Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Controller	" HT-900C " South Korea"TEMI" "OYO" Japan's "OYO" Brand optional
Refrigerating Unit	Original France"Tecumseh"brand Original Germany "Bitzer" brand
Cooling system	Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)
Safety Devices	Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
Parts	Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze
Optional Parts	printer, special port, added shelf, special shelf, PL internal bulbs, dry and wet ball gauze, etc.
Power Supply	1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz, Specified in order

Features: 1.*High texture appearance, the body adopted an arc shape, surface matte stripes processing,
and flat-handle, easy to operate, safe and reliable.
2.*Rectangular multi layer glass View window, the use of guinea pigs observed in the test window witt anti sweat heaters device prevents water gas condensate ,Knot,water droplets,PL fluorescent lamps to keep the inside lighting.
3.*Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of
the leak
4.*With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
5.*Compressor cycling system used France"Tecumseh"brand which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection
refrigerant (R23, R404, R507)
6.*Controller uses the imported LED display screen, can display measured values and setting time
7.*Controller with multisegment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.
8. *Built in mobile wheels allow easy movement and placed and has a strong positioning screw position.
Corresponding standard :
GB11158 Technical conditions for high-temperature testing box GB10589-89 Technical conditions for low-temperature testing box GB10592-89 Technical conditions for high and low temperature testing box B/T10586-89 technical conditions for humidity testing chamber GB/T2423.1-2001 Low-temperature testing methods GB/T2423.2-2001 High-temperature testing methods B/T2423.3-93 Testing Method for humidity Test Chamber GB/T2423.4-93 Alternating hot and humid testing method GB/T2423.22-2001temperature testing method IEC60068-2-1.1990 low-temperature testing method IEC60068-2-2.1974 high-temperature testing method GJB150.3 high-temperature testing GJB150.4 low-temperature testing GJB150.9 humid testing
Calibration & Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Laboratory Electronic Fast Change Rate High Low Temperature Test Machine 2. Usually we delivery the equipment by air,by sea or by express. it depends on customer.

Our Services
We are here to help you. Services available: Replacement manuals
Consumables and replacement parts On-site maintenance and repair Warranty support Over-the-phone service support and advice If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Service repair: We prefer you contact us direct at the factory with any problems you may be experiencing. We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs. Rarely can a local contractor get all that done for you as quickly as we can. We also guarantee the work
RFQ:
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it Thirdly, some of customized chambers we should to install and teach your team to operate .
