Sanitary Stainless Steel Screw Cone Type Powder Mixer

Product Description

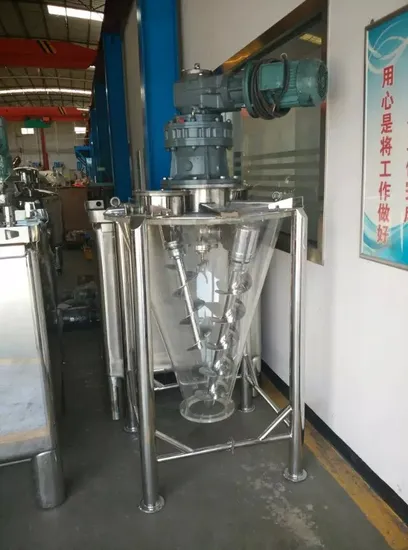

Double Screw Cone Type Mixer
Double screw mixer is convection mixer of high efficiency.It has characteristic of gentle, high accuracy mixing and no damage to product.Two screws suspended from a turning arm, with different rotation semi diameter and different length, make three-dimensional action;Meantime, two screws make self rotation.
Helix cone mixer application:
1.Applicable material proportion of the poor, the powder particles are relatively large materials;
2.Suitable for ceramic glaze mixing gentle process, the material particles do not pressure-fed or broken;
3.The heat-sensitive materials will not overheat;
4.In the powder - powder mixing process is very easy to add working conditions or providing a liquid to a plurality of spray outlet means;
5.The bottom valve of dislocation convenient material, since the bottom of the spiral no fixtures, so there is no pressure fed phenomenon
Features:
1.Homogeneous mixing
2.Short mixing time 5-15 minutes
3.Clean discharge & no leftover
4.Central discharge valve:
Electronic, pneumatic, manual (optional)
Ball valve, flap valve, knife gate valve, butterfly valve (optional)
5.Main shaft seal:Stuffing seal and air purge seal
6.Drive:Siemens motor, cycloid or gear reducer
7.Limit/safety switch (optional)
8.Heating/cooling jacket optional)
Technical specifications:

Mixer Model	Working volume (L)	Rotation speed (rpm)	Motor Power (kw)	Overall Dimension (mm)	Machine Weight (kg)
CMPN-50	20-30	2&108	0.75	Φ600×H1200	120
CMPN-100	40-60	2&108	1.1	Φ700×H1500	200
CMPN-300	120-180	2&108	2.2	Φ900×H2000	500
CMPN-500	200-300	2&108	3	Φ1100×H2300	650
CMPN-1000	400-600	2&60	4	Φ1600×H2700	1200
CMPN-2000	800-1200	2&60	5.5	Φ1900×H3400	1550
CMPN-3000	1200-1800	2&60	7.5	Φ2100×H3700	2200
CMPN-4000	1600-2400	2&60	11	Φ2400×H4400	2500
CMPN-5000	2000-3000	2&60	15	Φ2500×H4600	3100
CMPN-6000	2400-3600	2&60	15	Φ2700×H4900	3600
CMPN-8000	3200-4800	2&60	18.5	Φ2800×H5300	4100
CMPN-10000	4000-6000	2&60	22	Φ3000×H5600	4500
CMPN-12000	4800-7200	2&60	22	Φ3100×H6000	4800
CMPN-15000	6000-9000	2&60	30	Φ3400×H6600	5100
CMPN-20000	8000-12000	2&60	45	Φ3700×H7100	6200
CMPN-25000	10000-15000	2&60	55	Φ3900×H7500	7300
CMPN-30000	12000-18000	2&60	75	Φ4200×H8000	8500

DSH Series Technical specifications:

Mixer Model	Design volume (L)	Load factor	Working condition	Motor Power (kw)	Dimension (mm)	Machine Weight(Kg)	Mixing uniformity
DSH-100	100	0.85	ATM	1.5	Φ750×H1580	250	≥95%
DSH-500	500	0.85	ATM	3	Φ1150×H2320	600	≥95%
DSH-1000	1000	0.85	ATM	5.5	Φ1480×H2850	1200	≥95%
DSH-2000	2000	0.85	ATM	5.5	Φ1820×H3510	1500	≥95%
DSH-3000	3000	0.85	ATM	7.5	Φ2050×H3800	2300	≥95%
DSH-4000	4000	0.85	ATM	11	Φ2250×H4480	2500	≥95%
DSH-5000	5000	0.85	ATM	15	Φ2350×H4720	2800	≥95%
DSH-6000	6000	0.85	ATM	15	Φ2560×H4980	3000	≥95%
DSH-8000	8000	0.85	ATM	18.5	Φ2780×H5360	4500	≥95%
DSH-10000	10000	0.85	ATM	18.5	Φ3020×H5810	5500	≥95%
DSH-15000	15000	0.85	ATM	22	Φ3460×H6510	6800	≥95%
DSH-20000	20000	0.85	ATM	37	Φ3810×H7420	9800	≥95%
DSH-25000	25000	0.85	ATM	45	Φ4090×H7800	11000	≥95%
DSH-30000	30000	0.85	ATM	55	Φ4350×H8200	12500	≥95%
