30-1000t Bolted Cement Storage Silo Assembly for Efficient Construction Projects

Product Description

Cement silo/sand silo /storage silo/bolted cement silo
Introduction of Storage Silo :
Cement silo/sand silo /storage silo/bolted cement silo is widely used for storage cement,sand ,fly ash ,coal ash, limestone powder and other powder material ,it is a sealed device for bulk storage object. Each part is of piece production and connected with bolted ,so it is also called bolted cement silo .
Structure of Storage Silo :
The whole cement storage silo structure is comprised of silo body, dust remover, pneumatic arc-breaking device, loading pipeline, landing leg, discharging valve, air control box, external ladder stand and protective guard, etc.Silo body is divided into top cap, middle straight silo body and lower cone. The whole silo body is no longer a wholly welded structure but divided into sections longitudinally and pieces horizontally. Each chip-type silo body is connected with flange bolt. Plus rubber seal strip, the whole body is formed.On the bottom of silo ,it is connected with screw conveyor ,the cement or other material could be conveyed to mixer or batching system .Dust collector is installed on the top of silo for environmental protection .
Technical Parameter of Storage Silo:
As for serial cement silo /sand silo /storage silo/bolted cement silo is manufactured by our company, there are seven types of products, including 30T, 50T, 100T, 150T, 200T, 300T, 400T and 500T,800T. The overall structure and installation methods of these products are basically the same

Name	Diameter of silo body	intermediate barrel in sections	Cylinder body height (mm)	Cone Height (mm)	intermediate barrel in Pieces	Thickness of plate (mm)
						Cylinder thick	Cone thick
30T	3160MM	2 Sections	3500	2000	8	4	5
50T		3 sections	4260	2000	12	4	5
100T		6 sections	8700	2000	24	4	5
150T		9 sections	13000	2000	36	4	5
200T	4000MM	8sections	11360	2500	32	5	6
200T	4500MM	6sections	8700	2800	24	5	6
300T	5300MM	6sections	8700	3800	24	6/5	8
400T	6800MM	8sections	7300	4700	32	6	8
500T	6800MM	6sections	8700	4700	24	6/8	8
800T	8000MM	7sections	10100	5700	28	6/8	10
1000T	8000MM	9sections	13200	5700	36	6/8	10
top cap:Two pieces at one section
lower cone: Divided into upper and lower sections, of which the upper section is large cone, including 4 pieces while the upper one is small cone, including 1 piece.

The max volume could make 1000T. So For more details, Pls don't hesitate to contact us .
Advantage of Storage Silo :
All pieces of manufactured standard film, pressed on the independently developed mould, are interchangeable. The product belongs to the national invention patent product.
As the structure is in pieces with bolted connection ,so it is fast installation, firm structure, smooth appearance, no leakage of cement, no leakage of water, good sealing, removable, factory transfer, recycling and other characteristics.
Our factory Cement silo/sand silo /storage silo/bolted cement silo is widely used in dry mortar mixer plant ,Concrete mixer plant ,AAC block plant and other construction site .
We could guarantee that our our factory Cement silo/sand silo /storage silo/bolted cement silo could use 5-10 years ,not broken .
Installation is easier ,we could provide the installation video and workers is easier to learn .

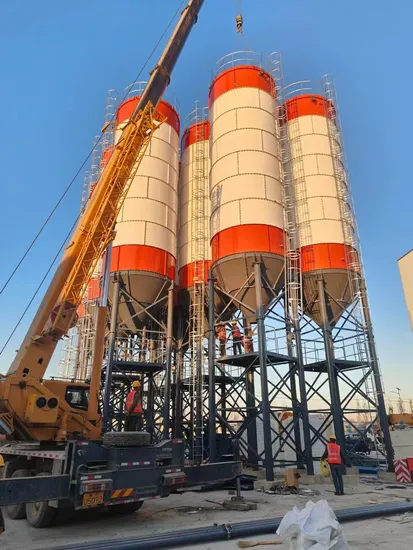

Photos of Storage Silo:
Installation Instructions
Installation sequence:
1. Warehouse installation
2. Accessory installation
3. Warehouse establishment
4. Acceptance testing
5. Reference installation tools and personnel

	crane	One unit of 25-50 tons, two units are needed on the day of warehousing
	Welding machine	1 unit
	Electric wrench	2 units
	Wallpaper knife	some
	Handheld pry bar	2 of them
	Long pry bar	1 piece
	worker	4-6 or more people
	Installation Time	2 days, based on the silo volume and quantity

Why Choose Us?
1. Quality Price
We have been in this field over 20 years, so we have great advantage in good quality with competitive price.
2. Test
Top production test equipment and production equipment to guarantee the product quality.Our product can totally meet SGS, BV, CIQ etc. test.
3.Packing
Wooden Box Package with fit for sea ship .
4. Transport
The products can be transported by big shipping company, we buy Insurance Policy for every client.
5. Service
We offer specialized logistic service including export declaration,customs clearance and every detail during shipment. This makes us able to offer you one-stop service from the order to the products transported to your hand.
FAQ
1: What is the condition to provide a correct offer ?
Kindly provide the filling material size ,density and capacity ,then we will offer it accordingly.
2: What is your acceptable payment term?
L/C,T/T,Western Union.
3: How about the validity of the offer?
Usually our offer is valid for 1 month. However, validity might vary between different products.
4: What documents you provide?
Usually, we provide Commercial Invoice, Packing List, Bill of lading, and Origin Certificate. Please let us know if you need additional documents.
5: What is loading port?
Usually loading port is Qingdao port, besides, Shanghai Port, Lianyungang Port is totally no problem for us, and also we can ship from other ports as your requirement
