Good Quality Satellite Dish Antenna Ku Band Dish Antenna 120cm
| Negotiable | 100 Pieces (MOQ) |
Basic Info.
Model NO.
BW-TX120
Sturcture Form
Wire Antenna
VSWR
<1.5
Item
60cm Ku Satellite Antenna
Size
60cm
Key Words
Ku Band Satellite Antenna
Model Type
Pole Amount
Packing Details
10PCS/Carton
Usage
TV Antenna
Operating Wavelength
Myriametric Wave
Nature of Operation
Receiving Antenna
Dimensionality
Two-Dimensional Antenna
Usage Occasion
Outdoor Satellite TV Antenna
Base Antenna
Outdoor Satellite TV Antenna
Transport Package
10PCS/Carton for Ku Band Antenna with 45cm
Specification
CE
Trademark
bowei
Origin
Anhui Hefei, China
HS Code
8529109090
Production Capacity
1000PCS Per Day for Ku Band Antenna with 45cm
Product Description
60CM 75CM 90CM 120CM Factory Customized Satellite Dish AntennaProduct describtion: 1. the surface of KU band 30cm35cm40cm45cm50cm55cm60cm65cm70cm80cm85cm90cm95cm 100cm120cm150cm180cm satellite antenna uses polyester powder coating.
2.High quality with reasonable price
| Items & spec | KU-60S(60CM) |
| Offest Angle(o) | 22.75 |
| Diameter(cm) | 60.0x65.0 |
| Focal Length(cm) | 39.3 |
| S-band Gain @2.5GHz | - |
| C-BAND Gain @4.0GHz | - |
| KU-BAND Gain @12.5GHz | 36.67dB 1dB |
| Elevation angle range(o) | 5-85° |
| Azimute (o) | 0-360 |
| Aperture Efficiency | 75% |
| F / D ratio | 0.38 |
| Painture (Polyester Powder) | v |
| Color (Gray/Cool Gray) | v |
| Standard Mount (G/P/W/PM) | W |
| Pole diameter Acceptable(mm) | 32-48 |
| Ambient Temperature | -40°C ~ +60°C |
| Relative Humidity | 0~100% |
| Net Weight (Kg) | |
| Material | Steel |

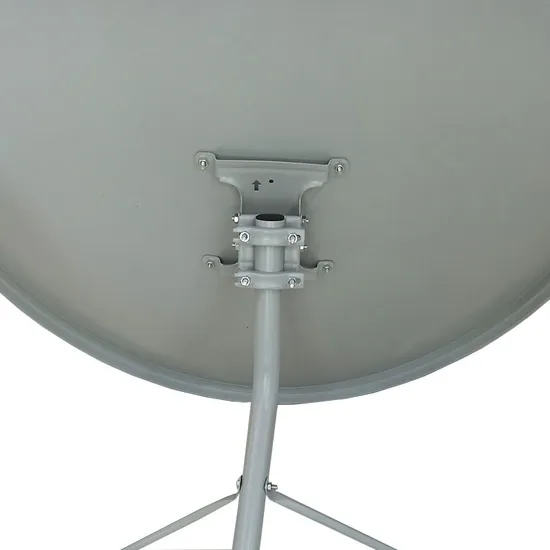

picture show:
Shipment:
We can send the goods as your requirement,Small goods suggest ship by Express.like EMS,HK post,DHL,FedEx.Large quantity suggest ship by Sea
Contact us: Any question and more information,please feel free to contact me,I will reply you within 24 working hours.
