Zd-G500huazhou Double Precision Machining Network

Product Description

Company introduction
Dalian, CNC technology co., LTD., is a collection of research and development, production, sales and service and integration of professional CNC machine tool company, we adhering to the concept of excellence, the pursuit of excellence, to become a machine tool industry new strength as the goal, with excellent research and development strength, exquisite manufacturing technology and comprehensive service system, to provide users with CNC precision machine tool intelligent, unmanned technology solutions.
Zhide CNC, no control: we take this as the brand vision, committed to building high precision CNC lathe, vehicle milling complex, machining center and other multi-axis automation integrated machine tools. Among them, the dual-spindle machine tool represents not only the companys technical accumulation, but also the perfect interpretation of intelligence, automation and integration. It is the painstaking efforts and wisdom of all employees that make the industrial intelligent machine that can realize no control come into being.
Dedication and growth together: Since its establishment in 2011, DEHT has the ability of CNC machine tool technology research and development and marketing services, and can provide customized technical solutions for users process needs. The ZZD factory established in 2016 marks that the company is more mature in the research and development, production and application of machine tools, and continues to integrate resources to better serve the new and old users. In 2018, the company has successfully developed the high pressure pump system, electrostatic oil mist collection system, oil and water separation system, crushing machine and other machine tool peripheral products. At the same time, the company has increased the research costs, Chinese-foreign technical cooperation, the European technical standards, research and development of products have been praised by users. In 2020, the company launched CNC dual spindle vehicle milling composite intelligent all-in-one machine, CNC lathe automation all-in-one machine, products are widely used in pneumatic hydraulic, motorcycle parts, home appliances, medical equipment and military aerospace and aerospace industries. In the future, we will continue to work hard to create more proud achievements.
Professional focus, gathering power: the company focuses on the research and development of small and medium-sized CNC precision machine tools intelligent manufacturing, equipped with professional process technical personnel to assist users to optimize the process and research and development of new products, excellence, cost reduction and efficiency. The companys machine tool application center carries the users new product development and product process optimization; the machine tool manufacturing center can according to the user equipment demand and machine tool development and manufacturing, and the machine tool marketing service center is for the user better use experience and training, consolidate the rapid supply of machine tool accessories and surrounding accessories, comprehensively improve the marketing service ability of CNC.
Import substitution, high precision and efficient: the company has applied for a number of national patent technology certification and ISO9001 international quality system certification, and won the eu CE qualification certification, the company with double quality system as the guide, with foreign machine tool manufacturers to carry out the technology research, with many well-known colleges and universities, developed the high precision, high efficiency, high rigidity CNC machine tools, part of the product has completely beyond the performance of foreign machines, to further realize the history of domestic machine replace imported machine vision.
Customer achievement, create value: we adhere to the customer-centered, market-oriented innovative service concept, established a stable service system and reliable technical team; over the years, the company deep work, dedicated research, independent research and development and foreign technical cooperation, according to the needs of technical solutions, to create the maximum value for users.
Honesty and pragmatic, innovation and win-win: in order to serve the new and old users in a full range, to reduce costs and increase efficiency for users, to obtain the maximum return on investment. The company actively research and develops machine tool manufacturing and application and other innovative technologies, to solve users in product research and development, manufacturing, precision environmental protection, high precision and efficiency and other related technical problems.
Small win by wisdom, big win by virtue: In the future, we will continue to adhere to the integrity, pragmatic, innovative and win-win business philosophy, through a diversified, deep, efficient customer management mechanism, to provide users with high cost-effective products. Let the user satisfaction, let the user rest assured is our eternal pursuit and commitment!

	order number			Brand or primary indicators	price
base stem or root of plants join in marriage	1	controller		New generation of 220MA	---
	2	lathe bed		Yaxin, Taiwan	---
	3	Fully enclosed protective cover		KANQIN	---
	4	principal axis		Taiwan number grid	---
	5	Spindle motor		New generation system supporting	---
	6	Spindle drive		New generation system supporting	---
	7	lead screw		Taiwan PMI or Japan THK	---
	8	Axial motor		New generation system supporting	---

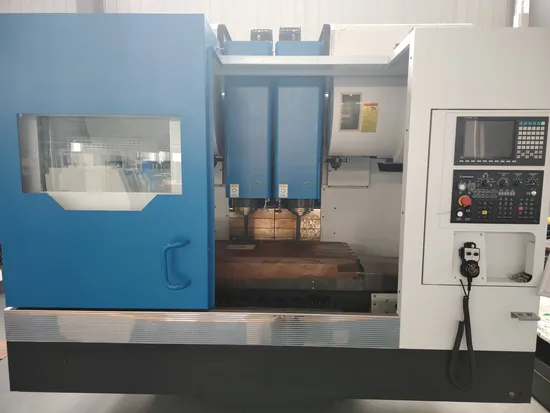

uDouble BT40 spindle machining center, can make two same parts at the same time, double improve the machining efficiency.uA set of CNC system, processing two units, easy to operate and energy saving.
uDouble Z axis independent structure, can be the two spindle tool length automatic compensation.
uStandard configuration of high-speed double-spindle rotation speed: 10,000 rpm / min.
u Double 24T manipulator knife library structure can be changed quickly and automatically, which is conducive to the multi-process processing of complex parts.uHigh power machine cooling pump ensures sufficient flushing capacity.
uThe fully sealed protective cover ensures the safety degree and environmental hygiene of the operator.
uEquipped with a scour device for easy cleaning and cutting.
uAutomatic centralized lubrication.
uSpindle surround spray and bed body spray system,
uThe spindle center outlet function, deep hole processing and cooling, and high pressure flushing to solve the problem of tool entanglement.
For automotive manufacturing, construction machinery, aerospace, electronics, special industries and other batch parts design, the pursuit of high production efficiency, high precision, high reliability.
Advantages of the double-spindle machining center over the single-spindle machining center:
efficiency improvement
Compared with the single spindle spindle processing center, the efficiency of the double spindle processing center is about 2 times higher than that of the single spindle processing center (depending on the processing technology, workpiece complexity, processing time and other conditions).
Save about half of the site
The dual spindle machining center is equivalent to integrating two single machining centers together, so the footprint is reduced by half and the rent is halved.
rigidity enhancement
The double columns of the double spindle are merged together, which is twice the width of the human type column of the single spindle, so the rigidity and stability of the machine tool is stronger than that of the single spindle machining center.
Four axes of province
The double spindle machining center can process two parts at the same time, saving half the number of four axes.
province artificial
One machine can produce two parts at the same time, saving half of the labor.
saves energy and electricity
Highly integrated, energy saving and power saving.
Processing consumables in province
Save electricity, provincial guide oil, save hydraulic oil, save gas, etc.
Save the auxiliary process time
The use of double spindle machining center can reduce the workpiece loading time, measurement and machine tool adjustment time.

Machine model		ZD-G500
range of work	Triaxial stroke X / Y / Z	800/550/550
	Spindle end face to the work surface	150-700
	Main shaft center to the column guide rail surface	600
staging	bed dimension	1300*550
	Maximum load bearing	800kg
	T-type groove (slot number * width * spacing)	5*18*100
principal axis	taper	BT40
	main shaft speed	10000rpm
	grab sb. for military service	45°
	main motor	11-15KW
	Spindle torque	52.5NM
	Spindle cone beat	0.003mm
translational speed	The X \ Y-axis fast movement speed	48M/min
	Z-axis fast movement speed	48M/min
	Triaxial cutting feed speed	1-10000mm/min
	X / Y / z / z three-axis power	3.9/3.9/5.9/5.9
	X axis rail	35-Roller-4-slider
	Y axis rail	45-Roller-4 slider
	Z-axis rail (two sets)	35-Roller-6 slider
	Three-axis rod (two sets of Z-axis)	Φ40-P16
accuracy	positioning accuracy	0.005
	Repeat positioning accuracy	±0.002
tool magazine	Number of tools (double knife store)	24 / 24 The
	Choose the knife form	Any type
	The maximum length of the tool	300mm
	The maximum weight of the knife	8kg
	The maximum diameter of the tool	φ 78 (full knife) φ 120 (adjacent knife)
	Automatic knife change time	1.55s (adjacent knife)
	pressure	0.6MPa
cooling	cooling power	1000W
	head of delivery	30M
	rate of flow	And 4 m 3 / h
	Coolant capacity	280L
other	The weight of the machine	7500kg
	Machine size	2700*2900*2900
	source	AC380V 3PH, 50Hz
	aggregate capacity	30KW

	order number			Brand or primary indicators	price
base stem or root of plants join in marriage	1	controller		New generation of 220MA	---
	2	lathe bed		Yaxin, Taiwan	---
	3	Fully enclosed protective cover		KANQIN	---
	4	principal axis		Taiwan number grid	---
	5	Spindle motor		New generation system supporting	---
	6	Spindle drive		New generation system supporting	---
	7	lead screw		Taiwan PMI or Japan THK	---
	8	Axial motor		New generation system supporting	---
	9	Axial drive		New generation system supporting	---
	10	clutch		LC	---
	11	Silk rod bearing		SKF/ silver dollar	---
	12	Electronic hand wheel		East side of Japan	---
	13	Network transmission interface		New generation system supporting	---
	14	U disk transmission function		New generation system supporting	---
	15	Linear guide rail		The Taiwan PMI or the HIWIN	---
	16	Industrial grade sealed lighting fluorescent lamp		Taiwan into	---	LED
	17	Three-color warning light		OTE stylish	---	LED
	18	Automatic lubrication system		Japanese Valley or Proton	---
	19	Air blowing cooling function		Japan SMC	---
	20	Water flushing cooling function		Tai kai	---
	21	high-pressure water jet		Aaron	---	Palm type
	22	Clean air gun		Taiwan MOBI	---	Palm type
	23	Level adjustment pad iron		ZHIDECNC	---
	24	Fourth axis interface		New generation of supporting	---
select place	25	Spindle cooling function (oil cooler)		RUCOL / crown	---
	26	The spindle surrounds the spray		ZHIDECNC	---
	27	Hydraulic / high precision handle / pull		Taiwan is and source		According to product configuration
	28	24 manipulator knives		Okada	---	Double knife library
	29	Water out of the center of the spindle		Si di	---	50kg
	30	CNC rotary table (axis 4)		Taiwan tanxing	---	apolegamy
	31	NUMERICAL control axis 4	.	Taiwan tanxing	---	apolegamy
		Brake tail seat		Tan Xing, Taiwan		apolegamy
	32	Broken knife detection		Ming ji	---	apolegamy
	6	packing list		ZHIDECNC	---
machine Article	37	Instructions (including system light disc)		The new generation	---
	38	certificate		ZHIDECNC	---
	39	common tools		ZHIDECNC	---
	40	Three-axis hollow bar		ZFIDECNC		standard configuration
