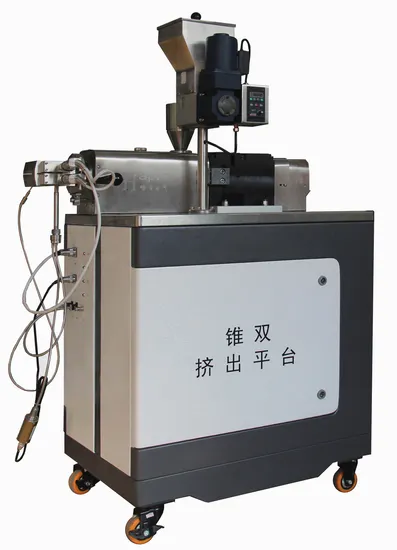

Conical Twin-Screw Extruder of Laboratory Extrusion Torque Rheometer

Product Description

Laboratory Conical Twin-screw Extruder can be integrated by main unit and conical twin-screw extrusion unit. That can be used to simulate real production process in the laboratory.Because of its special structure, the residual material can be cleaned quickly. In the measuring extrusion unit, the sample material begin plastify under practice-oriented conditions and extruded through the die head.Matched well with different die heads ,it's used for extruding the Belt, Tube, PCPO and granulation .
Conical Twin-screw platform is consist of the Drive device, Feeding device, Barrel ,Twin-screw and Dies parts, etc. The Twin-screw is the heart of the extruder, divided into the charging section (solid conveying zone), compression section(melting zone) and the homogenization section (the melt conveying zone) three parts. Put the material into the hopper ,under the action of a rotating screw, material was pushed on to the direction of the nose. Material endures strong shear, mixing and calendaring in the barrel, In this process, Meanwhile, the physical states of material the evolve from glass state to the high elastic state ,eventually become sticky flow pattern . Application Quality control and testing of raw materials ;
• Testing the processing behavior during recipe development and optimization;
• Testing of the extrusion ability of different materials;
• Investigation and optimization of processing conditions;
• Measurement of the rheological or viscosity properties of blends and compounds;
• Extrusion of degradable products;
• Small-scale production. Technical Parameters:

Barrel structure	Pull and turn	Screw Diameter	20 mm
Heating	Electrical Heating	Screw Length	325mm
Temp control system	RKC system	Heating power	3.2 kW
Max. Temperature	350ºC	Heating Zones	4 Zones
Temperature sensor	J type thermocouple	Cooling	Air Compression
Feeding speed	Manual adjustment	Pressure range	0-100 Mpa
Feeding	Screw metering feed	Output	1 -10 kg/ hr
Dimension (L×W×H)	1000×570×1500 mm	Weight	280kg
