Advertising Metal LED Sign Making Channel Letter Bending Machine

Product Description

Advertising Metal LED Sign Making channel letter bending Machine

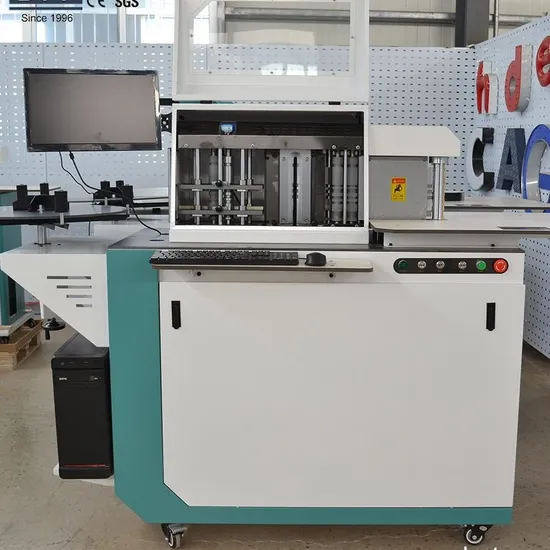

Product DescriptionBWZ-B1 channel letter bending machine is designed for 3D aluminum signage fabricating. It is fully automatic, high precision, high working speed and has great stability and durability. BWZ-B1 could perfect make notching and bending on different kinds of aluminum materials( flat aluminum coil, folding edge aluminum coil, aluminum channelume, etc ). which is widely using in the advertising industry.

Model	BWZ-B1
Function	Automatic feeding,slotting and bending
Applicable Material	Flat Alu,Folding Alu,Channelume
Material Width	Flat Alu:≤160mm, Folding Alu:≤160mm, Channelume:70,90,110mm
Material Thickness	Aluminum:0.3~1.5mm
Bending Radius	7mm
Feeding	φ36mm feeding wheel+Guide material auxiliary+Encoder
Slotting System	Motor control
Bending	Coupled extrusion-Double copper shaft flat arc bender
Control System	ADT
Power	<1500W
Air Pressure	0.6MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	320
Overall Size(mm)(L*W*H)	2100*800*1530

- All machining parts be treated with hard chromium plating, which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
- The motor and driver use the transformer with a voltage digital display device to replace switching power, monitor the voltage situation and remind customers to do the corresponding treatment when the voltage is unstable.
- The software has a Length closed-loop control system, the length deviation ≤0.1mm. Meantime Independent development software system, which can be updated according to customer need and easier to use.
- The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed
- Aluminum cutting system uses a 20mm PDF guide rail, the knife 75mm, guarantee smooth cutting with fast rotating speed and small cutting angle.
- Cutting mode use motor lifting control, more stable, less damaging on material and low noisy
- The four-column design could ensure the cutting system with high stability.
- Automatic type slotting depth adjustment, the configuration can be controlled by software
- Machine designed with double cooper shaft flat arc bending device, small radian beat, and large radian extrusion molding, high processing speed without damaging the material, could finish 80-100 square maters letter daily.
Product Parameters
Company ProfileShandong Yuantong Century Intelligent Technology Co., Ltd was founded in 1996, is principally engaged in the production and sales of CNC machines and advertising signage equipment, main products are CNC equipment (CNC Router, Laser Machine, Channel Letter Bending Machine, CNC Notching Machine, Plasma Cutting Machine, Punching Machine), Forming machine (Vacuum forming machine, Press Forming machine, Multi-function press vacuum forming machine, Acrylic bending machine) and metal signage environmental making machine (Metal Etching Machine), Meanwhile, our CNC Router and laser machine are also widely used in furniture making, stone processing, handicrafts making and clothing embroidery industry. Our company pursues "development and innovation" corporation philosophy. While our products are widely used and approved by users. Keep technical innovation and new product development. got CE certification, that meets European standards. And in domestic we got consumer satisfaction unit for many years Our staffs always persevere in the concept "sales is service". sales scope throughout China, also exported to the United States, Europe, South America, Russia, Southeast Asia.
Certifications
Applications
After Sales Service- Two years warranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happen during the warranty period.
- Lifetime maintenance free of charge. Free training course at our plant.
- We will provide the consumable parts at an agency price when you need replacement.
- English speaker engineer 18 hours online service each day, free technical support.
- Machine has been adjusted before the delivery, manual and related video will be with the machine.
Packaging & Shipping1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage. Before the delivery of the equipment, the after-sales engineer shall conduct a secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery, protect the parts that need oil, and check the related parts again.
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.
FAQ
1. What is a Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and lightboxes
2. How to choose a suitable Letter bending machine?
1) According to local needs, which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose an aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine, there is a detailed English install and operation manual &&video, meantime before you get this machine, our service engineer will contact you in advance, all questions you can contact them in anytime.
5.What is the type of shipping and producing time?
We offer EXW, FOB, CIF, DDU and DDP which you can choose as you like.
When you pay for the deposit, We will arrange production which about 7-15days delivery.
