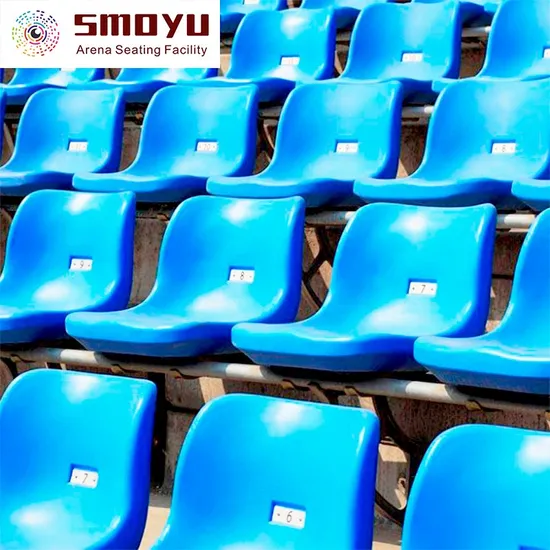

Outdoor HDPE Air Injection Blow Molded Plastic Stadium Seats with UV Resistance

Product Description

Product Description Shanghai Smoyu Industry Co., Ltd. presents the Stadium Bleacher Grandstand Middle Back Seat for sports events. Made of HDPE plastic, this demountable seating offers comfort and durability. Ideal for outdoor stadiums and arenas.
1,Stadium Seats.
The stadium seating ZK02 is perfect for stadiums for seat design, shape and installation. It is very beautiful, safe and long life to be used in stadium, good for installation and repairing them. The seat is made of HDPE which is High-density polyethylene. One time to be shaped and soft surfaces. HDPE is good material for seats and high resistance against high temperatures, Anti-aging, UV proof, impact resistance, high and low temperature resistance, good anti-oil resistance.
The size of the ZK02 HDPE Plastic seat: Wide×Deep×Hight=420×470×330(mm). We design an hole in the seat to release water in case it has no water kept in the seat. The weight is the HDPE is 2.05KGS±100g.
Main mechanical properties of HDPE:
ZK02 seats is approved with standard QB/T2601-2013, Seats and backrest of the chair static load: 2000N×20times, Back of the chair static load 800N×20times. Balance load of seat part: 2000N. Endurance load of seats part and back part: 960N×200 thousand times, and 350N×200 thousand times. Anti-impact Ability: Hight 360mm×20 times, back of the chair Hight 630mm×20 times. Ageing resistance performance: ≥3500. Outdoor UV proof. High temperature resistance:-60°C to +80°C, 72h. The seat Life span: more than 10 years.
Color of the HDPE:
We have standard color for produce, also we are glad to supply chairs with required Pantone Numbers, required Color samples for confirm.
Detailed Photos
2,Parts/Accessories.
Three installation types available for Stadium Bleacher Grandstand Low Back Seat Event Sports Demountable Tribune Seating by Shanghai Smoyu Industry Co., Ltd. Made of plastic, disassembly possible.

Floor mount	Riser mount	Bleachers seats

Floor mount (directly installed upon the front end of concrete step or wooden step, with screws in the bottom to fix the seat and the step).
Riser mount (seats are installed upon the aluminum feet, which fixed upon the riser slope of concrete steps or wooden steps)
Bleachers seats (A row of seats installed upon a steel/aluminum/ concrete stairs, can also be telescope bleacher seats system).
All above Feet are High quality Aluminum Alloy Holders, Polished, sprayed surface, good quality and good appearance.
2, Pipe:High quality pipe connects 1-20 seats or more.
3, Steel parts: All are anti-oxidation.
4, Fastening piece:Standard screws and Cushion for connecting hoops and seats and feet. Using expansion bolt to fix feet on the floor.
5, Aluminum sheet for seats numbers: Built in upside of the back parts, rows number is in the both side of per sets.
3, Installation:
There are different ways of installation the arena seating, but there are 3 main methods:
First is floor mount (directly installed upon the front end of concrete step or wooden step, with screws in the bottom to fix the seat and the step).
Second is Riser mount (seats are installed upon the aluminum feet, which fixed upon the riser slope of concrete steps or wooden steps)
Third is Bleachers seats (A row of seats installed upon a steel/aluminum/ concrete stairs, can also be telescope bleacher seats system).
Fixed seats on the floor with M8×70 extension bolts, the distance between seats is 480mm, the seats Hight about 425mm from the floor. To make sure the straight line of seats and rows.
According to Article 5.2 of JGJ57-2000: tolerances of average distance difference between seats should be less than 10mm, tolerances of rows distance difference should be less than 40mm.
4. Picture and color of seats

MOQ	500 pcs per color per type of plastic seats
Color	Red, blue, green, yellow. Per Pantone number can be also made

5. Other Relative Products

ZK01 High Back Outdoor UV Resistance Plastic HDPE Air Injection Blow Molded Stadium Seat	ZK04 Mid Backrest Grandstand seating system
ZK05 Low Back Air injection HDPE material Hot air blow molded stadium seats for bleachers	ZK06 Flat board Blow molded HDPE Arena Stadium seating

6. Project Display Stadium Bleacher Grandstand Low Back Seat High-quality plastic chair for outdoor events. Disassemblable design for easy setup. Perfect for stadiums and sports venues.
Shanghai Smoyu Industry Co., Ltd. offers Stadium Bleacher Grandstand Middle Back Seat for sports events. The plastic chair is disassembly-friendly, ideal for outdoor stadiums. Buy wholesale for the best prices! 5. General Information

Shanghai Smoyu INDUSTRY CO., LTD Marketing Manager: Lynn
Brand	SHANGAHI SMOYU INDUSTRY CO., LTD.
Type	Wholesale used stadium seats plastic seats for stadium
Model No.	ZK02 middle back chair with aluminum feet
Place of Origin	CHINA
Size	Customized stadium chair
Customized or not	Yes (Size and Color customized)
General Use	Stadium chair, Auditorium, Assembly Hall, Theatre, Cinema, School, TV Station Showroom, Stadium, Race court, bleacher seats etc.
Description	1. Indoor/Outdoor stadium chair 2. Advanced blow mold craft with anti-aging, anti-UV and fire-resistant HDPE material, professional design with comfortable sitting feeling. 3. Fully 100% maiden Eco materials, not included any recycling material 4. Tip up seat: gravity folding, simple and artistic 5. Material of legs and armrest is aluminum 6. Stanchion: steel pipe, hot galvanized treatment, allowing a long service year. 7. Blow Molding stadium seat, With Armrest. 8. High-density polyethylene(PE) material for plastic parts. 9. Fix legs to floor with anchors, floor mount type legs
Packaging Details	CKD in carton, air bubble film and wooden frame stadium seat
MOQ	500sets stadium seat
Delivery Time	7-15 Days
Output	500,000 sets/Month stadium seat
Loading Port	NINGBO, CHINA
Payment	T/T L/C

Stadium Chair Introducing the Stadium Arm Chair from Shanghai Smoyu Industry Co., Ltd. This innovative seating solution is perfect for stadiums, cinemas, assembly halls, and more. The middle backrest design provides optimal support and comfort for extended use.
Features: Wide Stadium Seat for added comfort Custom Cheap Theater Seats available Manufactured by leading suppliers in China Easy assembly for quick setup Benefits: Enhanced support for long hours of sitting High-quality materials for durability Competitive factory price Request a free sample for evaluation Upgrade your seating experience with the Stadium Arm Chair from Shanghai Smoyu Industry Co., Ltd. Contact us today for a quotation on the newest addition to our product line!
Hot Tags: Middle Backrest stadium seat, China, manufacturers, suppliers, factory, price, quotation, newest, free sample, Stadium Arm Chair, Cinema Seating, Assembly Hall Seating, Wide Stadium Seat, Stadium Seat, Custom Cheap Theater Seats
