Chinese 20-50mm Portable Electric Diesel Cone Limestone Jaw Crusher Pex 300X1300 for Construction

Product Description

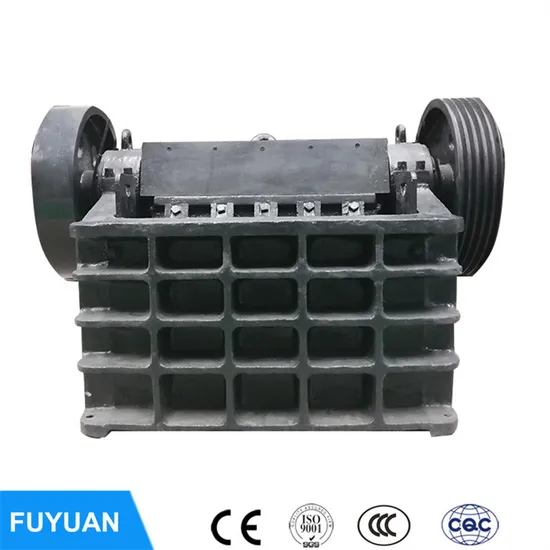

Jaw crusher is combined with the secondary crushing equipment in the whole stone crushing line,like cone crusher and impact crusher. Due to their smaller physical size, jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications. Product Parameters
Common parameters of jaw crusher

Model	Opening size(mm)	Max feeding size(mm)	Output adjust range(mm)	Production capacity(t/h)	Power (kw)
PE250*400	250*400	200	20-50	5-20	15
PE400*600	400*600	350	40-100	15-60	30-37
PE500*700	500*700	425	50-100	40-110	45-55
PE600*900	600*900	480	65-160	90-180	55-75
PE750*1060	750*1060	630	80-140	110-320	90-110
PE900*1200	900*1200	750	95-165	220-450	110-132
PE1200*1500	1200*1500	1020	150-300	400-800	160-220

Jaw crusher features: 1. The jaw crusher cavity is deep and there is no dead zone, which improves the feeding capacity and output;
2. The crushing ratio is large and the product size is uniform;
3. Gasket-type discharge opening adjustment device is reliable and convenient, with a large adjustment range, which increases the flexibility of the equipment;
4. The lubrication system is safe and reliable, the replacement of parts is convenient, and the maintenance workload is small;
5. Simple structure, reliable work, low operating cost;
6. Equipment energy saving: single machine energy saving 15%~30%;
7. The adjustment range of the discharge opening is large, which can meet the requirements of different users;
8. Low noise and less dus
Working principle of stone jaw crusher motor drives the eccentric axis rotating throughthe belt pulley, so that the movable jaw approaches and leaves the fixed jaw cyclical,which makes the materials squeezed. rubbed. multi-roller crusher, etc. so that thematerials are crushed into small size, and then decline gradually, at last dischargefrom the discharging mouth
Company Profile
Henan Fuyuan Machinery Manufacturing Co., Ltd
Located in High-tech Zone, Zhengzhou City, Henan Province. Our factory was founded in 1984,covering an area of over 38, 000 square meters and a building area of over 26,000 square meters. There are more than 300 employees, including 5 senior engineers, 23 engineers and more than 60 technicians. After decades of development, the company's appearance is changing with each passing day, and the comprehensive quality of employees has been greatly improved.
FAQ
Q1: Are you trading company or manufacturer?
A: We are a professional factory with 37 years' experience.
Q2: How long is your delivery time? A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are
not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% deposit in T/T advance, 70% balance before shipment.
Q4: How long is the warranty of your equipment? Does your company supply the spare parts? A: The warranty period of crusher equipment is one year. And we will supply the spare parts for you at lowest cost.
Q5: If I need the complete crushing plant can you help us to build it? A: Yes, we can help you set up a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
