Energy Efficient Waste Tire Shredder Machine for Scrap Tire Recycling

Product Description

Company Profile
Qingdao Longyuan Baihong Machinery Equipment Co., Ltd. has taken the responsibility of recycling waste resources and creating a green ecological environment. With the continuous technological breakthroughs, our company, cooperating with Qingdao University of Science and Technology,established a laboratory and developed waste tire pyrolysis carbon black equipment, which realized the fourth generation of Industrial Intelligence. Therefore,the factory transformed heavy manual operations into automated production.Our company mainly produces automatic fully continuous recycling pyrolysis plant of waste tires, waste rubber, waste plastics, and oil sludge.
Product DescriptionTire cutting system: Waste tires are crushed into 3-8cm rubber blocks by semi auto tire cutting system or tire shredder;
Rubber blocks will be crushed into rubber granules or rubber powder by rubber granule production line;
Magnetic separators remove steel wire from rubber granules or powder;
Fiber separator removes nylon fiber from rubber granules or powder;
Fine grinder system: Crush rubber granules or powder into more fine powder, like 60mesh, 80mesh, etc.
Rubber Shredder Parameter:

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector

Technical Features:
1. The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
2. The double shaft shredder for tire/plastic is control by PLC system; the blade can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service.
3. The blade is made from special alloy steel, sturdy and durable.
4. All the machinery and electrical devices are protected in accordance with the European CE standard.
Product Details:
Tire Debeader
Tire debeader is the first process in waste tire treatment. Its function is to cut off the rim of the waste tire containing steel wire for the subsequent treatment by the double-shaft shredder. It effectively improves the service life of the blades and increases the working efficiency.
Double-shaft Shredder
The shredder uses motor soft starting method, and the processing capacity is 3-10 tons of waste tires per hour. It is composed of charging belt section and slope belt section. In order to ensure the pass rate of discharging block, the shredding unit is equipped with roller screen and other accessories.
Tire Thread Rolling Machine
It is used for removing wire rims from the inner tires. The blade of the cutter is alloy welded and has a hard, wear-resistant surface. The machine is equipped with a protective frame, which effectively prevents unsafe elements during the extraction process.
Tire Grater
The main function of the grater is to separate the rubber particles and steel wire from the input rubber block of about 50mm. There is a mesh screen in the machine to control the size of the particle discharge. Combined with linear feeder and magnetic separator, the separation of rubber particles and steel wire can be carried out on the linear feeder.
Rubber Crusher
It is equipped with overload protection device to protect the main parts from damage due to overload. It is also equipped with emergency brake, when an emergency occurs, pull the lever, it will immediately brake, safe and reliable.
Raw Material:
Final Products:
Production Process Diagram:
Process:

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Product Parameters

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve
Conveyor	The material surface of the rack has undergone rust removal treatment
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate

Strategic Partners:
Patents:
Certifications

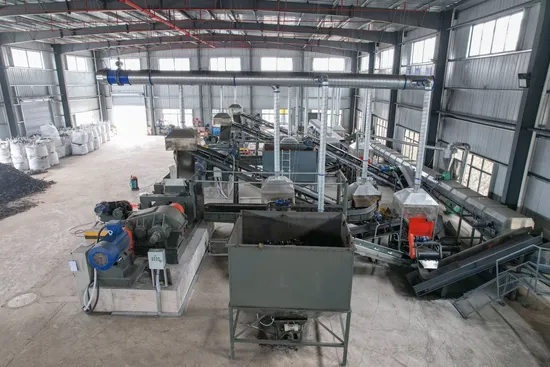

Workshop:
Packaging & Shipping
Our Customers:
We are committed to providing high-quality tire shredders and excellent customer service. Contact us to learn more about our products and how they can benefit your tire recycling or waste management operations !
FAQQ: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation, commissioning.
