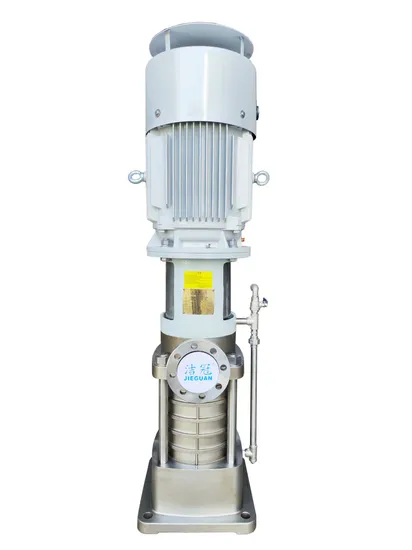

China Stainless Steel Sea/Salt Water Marine/Boat/Ship/Vessel Vertical Multistage High-Pressure Centrifugal Bilge Pump

Product Description

Product Description DL-G series marine vertical multistage centrifugal pump Zhangjiagang Pacific Pump Manufacturing Co.,Ltd are leading supplier of marine pumps such as marine fire fighting pump,
centrifugal seawater pump,marine boiler feed pump,marine circulating water system,ship domestic water system ,the main material of Jieguan marine seawater pump for cost iron or stainless steel can be used in seawater corrosive media .the pump hydraulic model is advanced,high efficiency and energy saving .the pump internal leaf adopts stainless steel stamping,smooth flow,seal with wear resistant mechanical seal ,no leakage,the pump running smoothly low noise,the reliable quality,beautiful appearance,small size,light weight,convenient installation and operation,discharge pressure more than 8Mpa .is an ideal green environmental protects. Parts show
DL-G installation structure diagram
DL-G material list

NO.	Name	material	Remarks
1	Motor	marine
2	Coupling	450-10
3	shaft	X2CrNiMo17-12-2
4	Machine cover	JL200/450-10
5	Mechanical seal	K30
6	outlet base	GX5CrNi19-10
7	Flange	GX5CrNi19-10
8	Outlet guide vane	X5CrNi18-10/X2CrNiMo17-12-2/ X2CrNiMoN22-5-3
9	Balancing drum	Cuzn38/ CuZn33
10	Bearing guide vane	X5CrNi18-10/X2CrNiMo17-12-2/ X2CrNiMoN22-5-3
11	Alloy inner ring	K30
12	Guide shell	X5CrNi18-10/X2CrNiMo17-12-2/ X2CrNiMoN22-5-3
13	Long bay stage sleeve	X5CrNi18-10
14	Short bay stage sleeve	X5CrNi18-10
15	Last stage sleeve	X5CrNi18-10
16	Intake base	GX5CrNi19-10
17	Impeller	X5CrNi18-10/X2CrNiMo17-12-2/ X2CrNiMoN22-5-3
18	Pull rod	X5CrNi18-10
19	Ordinary guide vane	X5CrNi18-10/X2CrNiMo17-12-2/ X2CrNiMoN22-5-3
20	Cooling water pipe exhaust device	X5CrNi18
21	Cooling water pipe of mechanical seal chamber	X5CrNi18
22	Cooling water pipe at outlet of low-pressure chamber	X5CrNi18

The data sheets only for you get to know,we receive you require,we will be offer technology file and quotation within 48 hour.wie looking forward cooperation with you in the future.
Technical Parameters Notes:
The NPSH is 380v/50hz in list,more than 380v/50hz please contact factory Tech team.
Exhibition of maritime
Factory shows
FAQ Q1:Are you a manufacturer or trade company?
Re:We are an mdustrial and trade enterprise with a history of 16 years.
Q2:Can you provede samples in free?
Re:sorry we can't offer the free sample but we will send you selection manual for marine pump.
Q3:What is your transport?
Re:For sample shipment,we use DHL,Fedx,TNT,UPS post and other coutries .for massive orders we use sea trnsport.
Q4:How are you long time of delivery?
Re:peak season lead time:one mounth off season lead time:within 15 workdays.
