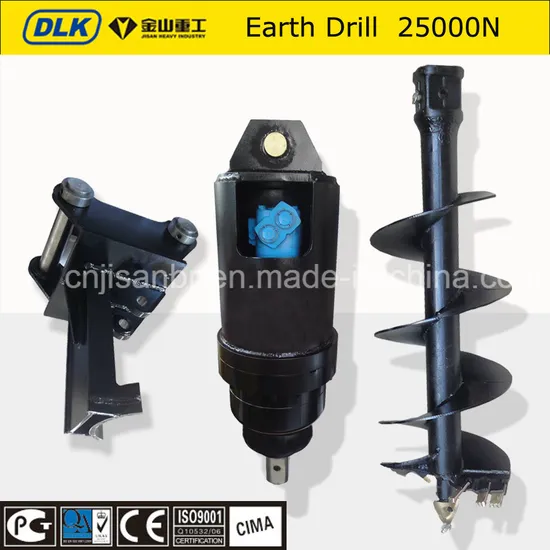

Excavator Hydraulic Soil Auger Ground Driller for Hole Digger

Product Description

Product Description:
Diameter and the depth of hole drilled
Diameter:From 100mm to 1200mm
Depth: we can provide extension shaft to meet your demand for depth

Ground type
Soil, Clay----Ordinary drill pipe
Sandy Soil, Gravel Soil----Wear-resisting drill pipe
Rock, Pitch----Soft Rock drill pipe
Parameters:

Item	Unit	DLKE02	DLKE03	DLKE04	DLKE05	DLKE06	DLKE07
Application	ton	1.5-3	2-4	2.5-4.5	3-5	4.5-6	5-7
Torque	Nm	790-2590	1094-3195	1374-3578	1374-3578	2570-6917	3163-8786
Pressure	bar	70-240	80-240	80-240	80-24	80-240	80-240
Flow	Lpm	25-65	25-70	40-80	40-80	40-89	48-110
Rotate speed	Rpm	36-88	30-82	35-75	35-75	20-46	20-45
Output shaft	mm	65rnd	65rnd	65rnd	65rnd	75rnd	75rnd

Item	Unit	DLKE08	DLKE10	DLKE15	DLKE20	DLKE25	DLKE60
Application	ton	6-8	10-15	12-17	15-22	17-25	20-40
Torque	Nm	3854-9961	5307-15960	6715-20998	8300-25768	15660-30400	27200-59500
Pressure	bar	80-240	80-260	80-260	80-260	120-240	160-350
Flow	Lpm	70-150	80-170	80-170	80-170	100-170	100-250
Rotate speed	Rpm	23-48	19-41	15-32	12-26	12-21	10-22
Output shaft	mm	75rnd	75rnd	75rnd	75rnd	75rnd	110rnd

Application excavator:
CASE DAEWOO HITACHI HYDUNDAI SAMSUNG VOLVO KOBELCO SANY SUMITOMO KATO DOOSAN ATLAS LOVOL SUNWARD IHI

Working Scene
Apply to pore forming operation of tree planting, telecom, electric power, municipal garden, highroad, railway etc.
Our Service
1. 7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty , if beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience.
Our products have been exported to many countries in the world including India,Saudi Arabia
, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
