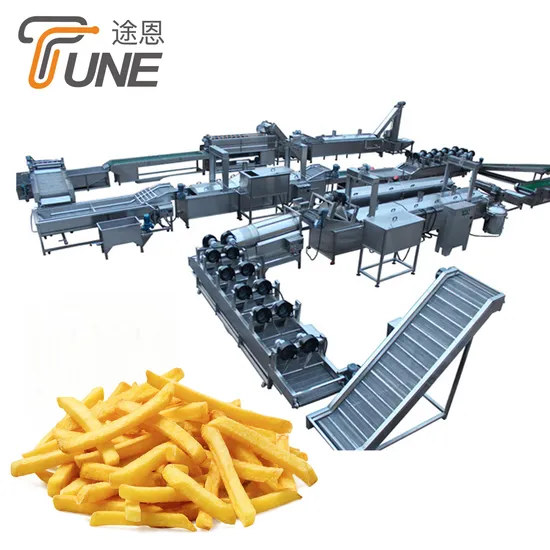

1000kg Fully Automatic Frozen French Fries Production Line
| US$95,000.00-180,000.00 | 1 Set (MOQ) |
Basic Info.
Process
Cleaning,Blanching, Frying, Freezing
Automatic Grade
Automatic
Application
Frozen French Fries
Customized
Customized
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Material
304 Stainless Steel
Accessory
Oil Tank and Extra Oil
Transport Package
Whole Container Transportation
Specification
30 meter length
Trademark
TUNE
Origin
China
HS Code
8438600000
Production Capacity
20set/Month
Product Description
500kg Fully Automatic Frozen French Fries Production LineProduction process
Potato requirement
Oval in shape Dry material content≥20% Sugar content≤0.4%;
Length ≥68mm Color outside is yellow Color inside is white
Less and small bud hole
Equipment and components
| No. | Machine name | Application |
| 1 | Hoist | It is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine. |
| 2 | Washing and peeling machine | This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely |
| 3 | Inspecting table | This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system. |
| 4 | Potato cutter | This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important |
| 5 | Hoist | It is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine. |
| 6 | miscellaneous machine | This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step. |
| 7 | Rinsing line machine | This machine used to washing potato starch and protect potato from oxidation, keep its original color |
| 8 | Blanching line machine | This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries. |
| 9 | Air-dryer machine | Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato. |
| 10 | Hoist | It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator. |
| 11 | Vibration dehydrator | Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato. |
| 12 | Continuous frying line machine | This machine is used to unified fry sticks in short time. |
| 13 | Vibrating oil off machine | This machine is used to de-oil with the vibrating |
| 14 | Dried degreasing machine | Use fan to blow off the water on stick surface, then deliver sticks into the freezer. |
| 15 | Hoist | It is used to between Dried degreasing machine and freezing machine |
| 16 | Quick freezing machine | It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality |
| 17 | Automatic packaging machine | It is used to pack the french fries automatically. |
