Tilting Aluminum Metal Good Quality Gravity Die Casting Machine with Robot Pouring

Product Description

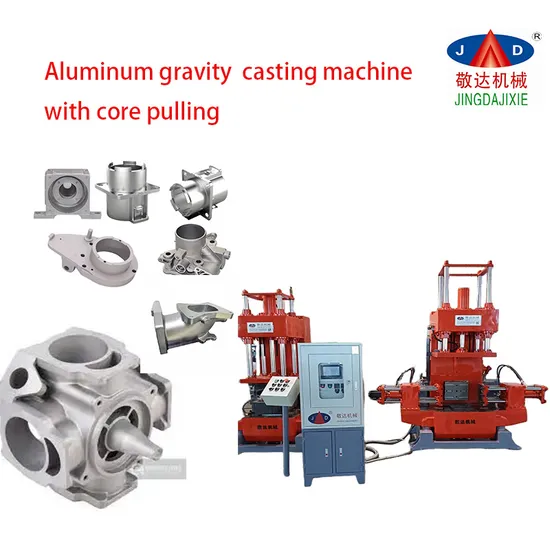

Aluminum gravity die casting machine

The maximum size mold frame	(700*600*780)mm
Hoist Cylinder Size :	Φ125/Φ60-400
The Maximum Opening/ Clamping Force:	90KN/120KN
Max Ejection force:	70KN
Maximum / Minimum Distance Between Top and Bottom Formwork:	395-795
Ejection Cylinder Size:	Φ110/Φ60-70
Back Core pulling cylinder size:	Φ100/Φ50-150
side core pulling cylinder size:	Φ100/Φ50-200
Table tilting angle:	0°-90°
Motor power:	7.5kw
Hydraulic system working pressure:	0~12MPa
Cooling way:	Water cooling
control:	manual and automatic
Machine size(L*W*H):	(3070*2270*1910)m
Machine weight:	3500kgs

I. Introduction
1. Application
Tilt Gravity Die Casting Machine JD-750-75A is a machine used in casting not only aluminum but also zinc and some other metals. But they can't be used for brass and copper casting.
2. Machine components
The machine consists of three parts, such as mechanical part, hydraulic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.
3. Main specifications and technical parameters:
1) Controlled by a PLC control unit. (Mitsubishi).
2) Running: Hydraulic Transmission&water cooling system(A hydraulic master cylinder
System can control three casting machines)...
3) Casting Function: Tilting moving casting, fixed tilting casting, fixed horizontal casting
4) Casting speed & angle are adjustable, size angle: 0-85°
5) The time of colling mold is adjustable
6) The size of die holder of fixed mold: 750mm*350mm*70mm
7) Max. Weight of mould: 250kgs
8) Having safety footboard(the set to protect the operator)
9) Power: 7.5KW.
10) Max engaging distance: 400mm
11) The space between the fixing board of the mold: 620mm
12) The pressure of engaging mold: 4200kg
13) Fuel tank capacity: 450L
14) Working oil pressure: 50-60kg/cm²
15) Solid time are adjustable.
16) The time of casting can be shown.
17) The level of pouring package can be controlled
18) If the die temperature exceeds the limits, the mold can not be engaged
19) The net weight of machine: 3500kg
20) Machine dimensions: 2600mm* 1500mm* 1700mm
II. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
