HDPE LDPE PE Blown Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine

Product Description

Product Description

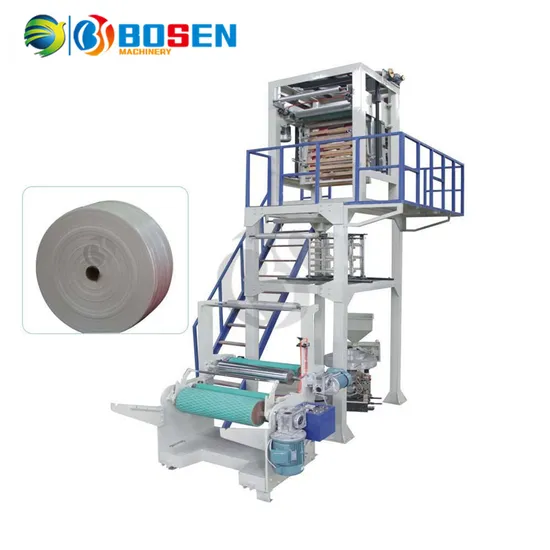

BSJ HD/LDPE Film Blowing Machine In Agriculture Film
It is used for blowing PE(HDPE LDPE LLDPE) film, which is widely used for water package bag , laminating film, packing film, agriculture film, film for textile, clothing bag,etc.
Detailed Photos
Product Parameters

Model	BSJ 50-700	BSJ 55-900	BSJ 60-1100	BSJ 65-1350
Suitable Material	HDPE/LDPE/LLDPE
Max Film Width(mm)	600	800	1000	1200
Film Thickness(mm)	HD:0.008-0.08
	LD:0.02-0.15
Max Extrusion Output HD	40kg/hr	50kg/hr	60kg/hr	80kg/hr
LD	50kg/hr	60kg/hr	70kg/hr	100kg/hr
Extrusion unit
Gear Box	146	173	173	200
Screw Diameter(mm)	φ50	φ55	φ60	φ65
Screw L/D Ratio	28:01:00	28:01:00	28:01:00	28:01:00
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	250W×2	370W×2	370×2	370×2
Thermo Control (zone)	3	3	3	4
Driving Motor (kw)	11	18.5	22	30
Extrusion Die
Die Size (mm)	HD:φ60	HD:φ80	HD:φ100	HD:φ120
	LD:φ150	LD:φ180	LD:φ220	LD:φ250
Die Rotary Device	360°Continue Rotary 360°
Screen Changer	Standard manual
Thermo Control (zone)	2	2	2	2
Air Ring (mm)	φ620	φ760	φ760	φ760
Cooling Blower (kw)	1.5	2.2	2.2	3
Center Steady Stick	1 PCS
Take-UP Unit
Roller Width (mm)	φ138×650	φ138×850	φ138×1100	φ138×1300
Embossing Roller Width	550mm	750mm	1000mm	1200mm
Take-UP Motor (kw)	0.75	1.1	1.1	1.5
Take-UP Speed(M/min)	10-60	10-60	10-60	10-60
Height adjustable type	700mm
Winding Unit
Type OF Winder	Surface Friction Winder
Roller Width (mm)	700	900	1100	1300
Winding Motor (N.M)	6	10	10	16
Winding Speed(M/min)	10-60	10-60	10-60	10-60
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	4.5×2.0×4.3	4.5×2.2×4.5	5×2.5×4.8	5.5×2.8×5.2

Certifications
Packaging & Shipping
Company Profile

FAQ
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.
