My618 Automatic Hydraulic Surface Metal Grinder Machine

Product Description

MY618 Automatic Hydraulic Surface Metal Grinder Machine

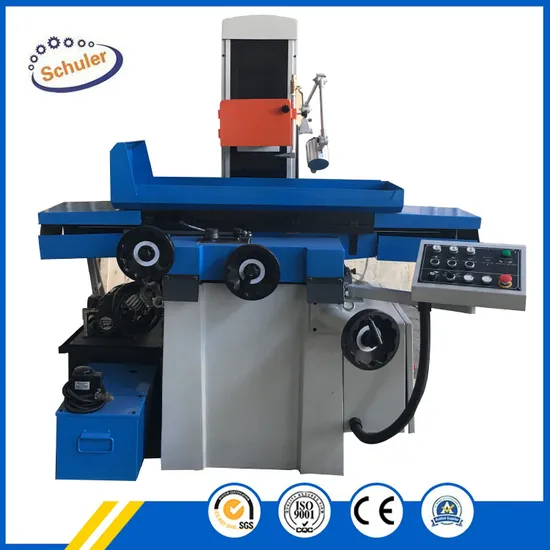

Product Picture:
Main Features:
The machine can grind various planes and complex molding surfaces. It is suitable for grinding without motorized feed. The spindle adopts P4 precision rolling bearing and labyrinth seal. It has good waterproof and dustproof performance, stable movement and high precision. The ball steel guide rail is used longitudinally, the operation is light and flexible, and the column adopts a large-span guide rail, which has good rigidity and high stability. The whole machine is manually lubricated by a manual oil pump.
Technical Parameters:

Model			Unit	M618
Workbench	Table size (L × W )		mm	450X150
	Front and rear travel		mm	178
	Left and right travel		mm	483
	T-slot (number of slots × slot width)		mm	1×14
Grinding wheel	Max.distance from spindle center to table		mm	360
	Vertical feed handwheel feed	per revolution	mm	1.25
		Hand wheel	mm	0.01
	Feeding handwheel before after	per revolution	mm	2.5
		Hand wheel	mm	0.01
	Wheel speed		r/min	2850
	Wheel size (OD × ID× W)		mm	Φ180×13×Φ31.75
Working accuracy	Parallelism		mm	300∶0.01
	Surface roughness		μm	Ra0.32
Machine weight	N/W		kg	680
	G/W		kg	730
Total motor power			kw	1.14
Grinding wheel motor power			kw	1.1
Dimensions (L×W×H)			mm	1550×1100×1680
Box size(L×W×H)			mm	1600×1100×1800

Product Details:
Grinding Machine Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
