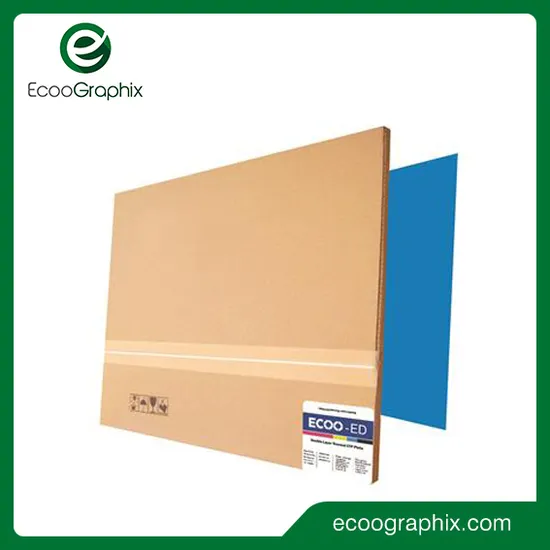

Thermal Double Layer Offset UV Ink Printing CTP Plate

Product Description

Thermal Double Layer Offset UV Ink Printing CTP Plate

Model: ECOO-ED
1. Application
EcooGraphix Double Layer Therrmal CTP Plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.
2. Specification

General Information
Plate Model	ECOO-ED
Plate Type	Thermal UV-CTP Plate(Double Layer)
Application	High grade commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum Alloy	Standard 1050 Alloy
Coating	Two-layer system, IR sensitive, positive acting
Gauge	0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum Short Grain Width	Maximum width 1,280 mm
Plate Intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length Of Run	Ordinary Ink: 100,000 to 200,000 impressions UV Ink: 50,000 to 100,000 impressions

Exposing
CTP Plate Making Machine Plate Setters	Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS Heidelberg: Top setter/Supra setter; Luscher: Xpose Plate setter Screen: PT-R, Creo: Scitex EcooGraphix Thermal CTP Tseries
Exposure Energy	110-130 mj/cm²
Spectral Sensitivity	800-850 nm - Peaks 830nm
Resolution	1-99% @ 200 LPI
FM Capability	20 micron stochastic
Image Color	Blue Green to Pale Green

Developing
Processor	All the kind Brands
Developer	Kodak Gold Star or our own developer
Processing Temperature	23°C +/- 2°C
Developing Time	25-30 sec
Processing Speed	0.80-1.20 m/min

Storage And Handling
Safelight	Daylight handling
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage And Handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity.

3. Characteristic
Features
- Positive writing thermal plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 100,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening
Advantages
- Resist UV-ink; Workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions
4. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
5. Certifications
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
