Good Quality LED Linear Light Flexible 2835 LED Strip Light with TUV CE Compliant

Product Description

High Brightness LED Strip Light (240LEDs/M) with High Quality SMD2835LED
variety of colors:
SMD chip led component:
LED Strip quality assurance: features as follow: 1. 24-26/26-28lm/LED high brightness and Less than 3% low decline after 5000hours working.
2. Modular design: every 6LEDs/3LEDs as a module and work independently.
3. 24VDC input Voltages can support longer LED strip connection.
4. FPC: 8/10mm width FPC and smaller components, LED strip is more flexible.
5. Support customized size: you can cut the size of led strip you want by installation.
6. Dimming support: by RF or IR led dimming, be able to adjust the LED strip brightness.
7. More than 50000hours working life with 3-5 years warranty.
8. ≤ 15º C temperature rise.
9. IEC/EN62471 photobiological safety compliant(no ultraviolet radiation).
10, IP level: Non-waterproof(IP20),silicon/PU(IP65), and total waterproof(IP68)processing, be able to install in any indoor/outdoor environments.

protection level:
IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater
The comperison of different quality strip:

The comparison between good quality led strip and poor quality cheap led strip
Comparing ltems	Our quality 2835 led strip	Cheap 2835 LED Strip
2835 SMD LED	gold wire bonding and copper pad	alloy wire bonding+iron pad
LED Quantity per meter	60/120/180/192/240LEDs/m	60/120/240leds/m
Lumen flux	90-110lm/w	80-90lm/w
SDCM	<3 or <5	>6
Working voltage	24V DC/ 12V DC/ 5V DC	24V DC/ 12V DC/ 5V DC
Working Consumption	12Watt/m, 16Watt/m ,20Watt/m	10Watt/m, 12Watt/m, 16Watt/m
Size	5000x10x1.3	5000x9.5x1.3mm
Working lifespan	>50000hours	>30000hours
PCB Type	double sides PCB with Plating processing	two layers PCB with through-hole processing
Forwark voltage drop	1.7V(5mts)	2V(5mts)
Brightness down (5000hours)	<3%	<10%
Quality reliability	Good	Normal
Resistor	Thick body resistor with big solder pad	Thin body resistor with small solder
Certificate	IEC/EN62471, TUV, CE, ROHS, FCC	Unknown
Weight	0.12kg	0.11kg

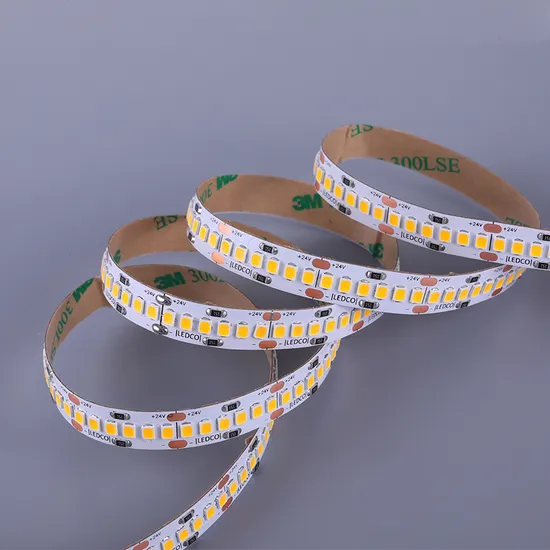

Product Image

LED Strip Installation Guide:
Technical Parameter:

Item	2835 series	3528 series	COB series	LED Neon	5730 series	High Volt LED Strip	5050 series	RGB series	RGBW series	Digital LED Strip
LED Quantity (leds/m)	30/60/120/240	60/ 120	320/ 528	120	30/60	70/120	30/ 60	30/60	60	60
Power (Watt/m)	6/ 12/ 17/ 23	4.8/ 9.6	8/ 10/ 12	8/ 10/ 12/ 15	7.5/ 15	11/ 12/ 15	7.2/ 14.4	7.2/ 14.4	19	15
Lumen Flux (lm/led)	24-26/26-28	7-8	700-2200	24-26/26-28	50-55/55-60	24-26/ 60-65	24-26	2000-2400Mcd	3000-3500Mcd	1500-1900Mcd
Size(L*W)mm	5m/reel 4/5/8/10/12/15mm width	5m/reel 8/10mm width	5m/reel 8/10mm width	0606/0808/1010/ 1212/1616/0612/ 0613/1018/0410/	5m/reel 10mm width	5/10/20/50m/reel 8/10/12mm width	5m/reel 8/10/15mm width	5m/reel 8/10/15mm width	5m/reel 10/12mm width	5m/reel 10mm width
Color Temp	2000k, 2500k, 2700k, 3000k, 4000k, 5000k, 5700k, 6500k, 8000k, 12000k
Color	Warm White, Nature White, Cool White, Red, Green, Blue, Yellow, Orange and other option							RGB	RGB+ White	RGB
Working Voltage	DC 12V/24V AC 110V/220V
Protect Grade	IP20,IP65,IP67,IP68
Working Lifespan	>50000Hours
Package	5mts/Reel , 10mts/Reel , 20mts/Reel , 50mts/Reel ,anti-static bag/inner box+outer carton
Packing Qty	20Reel/50Reel/100Reel/200Reel Each Carton
Warranty	3-5years
Certificate	FCC, CE, RoHS, IEC/EN62471, LM-80

Applications:
.Hotel,house decoration
.Bar, stage, casino,KTV,supermarket
.Store, cafe, restaurant, shopping center
.Residential, institution buildings
.Hospitals, museum
Others:

Technical material	user manual, installation manual and maintenance manual
Service	1. Provide free technology support by phone and e-mail
	2.we provide training to replace the broken part
	3. two years guarantee: we provide the replacement during guarantee.
Payment	50/% deposit. Balanced before shipment.
Delivery	Approx 12-15 working days normally (from receiving the deposit)
Transportation	By Air/Sea

Packaging and shipping : 1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
Company:
FAQ:
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
