Wireless Forklift Camera with Green Laser Line Positioning

Product Description

Wireless Forklift Camera with Green Laser Line Positioning Description:
Forklift trucks block the driver's line of sight when forking objects, and there are blind spots in the front and back lines of sight, which pose a safety hazard to people and equipment in the area, and it is difficult to pile up goods with high positioning accuracy. The wireless camera monitoring system of the forklift truck is helpful for the operator to observe the front and rear of the vehicle in real-time through the display image, reducing the blind area of sight and improving the efficiency of stacking goods. 30000mAH high-power mobile power supply has a long working time.
Features:
Wireless HD LCD Monitor
7-inch digital screen display built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd / sqm. Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 200 meters. Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application. The bracket is made of rust-proof metal material, with U-shaped + double-sided fastening anti-vibration design. Wide working voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period Wireless HD Car Waterproof Camera
1080P 2.4GHz wireless camera, automotive grade DSP, millions of HD pixels. Stainless steel anti-collision machine shell, with built-in green one-character laser positioning line, IP69K waterproof grade. Mobile Rechardeble Power Supply
Rechargeable mobile power supply, with built-in short-circuit reverse-connection protection circuit and overcharge and over-discharge protection circuit design. Constant current and constant voltage circuit design, to extend the service life. Adopting magnetic suction installation design, which can be installed at any vehicle position. IP67 waterproof grade Parameter

Wireless HDC LCD(MWHD-774HD)
Colored LCD screen	7-inch IPS screen
Wireless Reveiving	built-in 4 channels of 2.4G wireless reveiver
Picture Mode	single picture/double pictures/three pictures/four pictures
Operating Frequency	2400~2483.5MHZ
Recording Function	maximally support 256GB TF card
Recording File	AVI format
Receiving Sensitivity	≤-86 dB
Receiving Distance	open space≤100 meters
Multiple frequency point automatic frequency hopping channel code	80
Resolution	1024(H) X 600(V)dot
Color System	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
Load Dump	ISO16750-2 standard(24V systemUs=174V,Ri= 4Ω,td=350ms)
Anti-vibration Grade	5G ( meets GB-T2423056-2006 standard)
Operating temperature	-20ºC to +70ºC
Storage Temperature	-30ºC to +80ºC
Operating Voltage	DC8-32V
Outer Dimension	(L x W x T) (216 x 150 x 80mm)

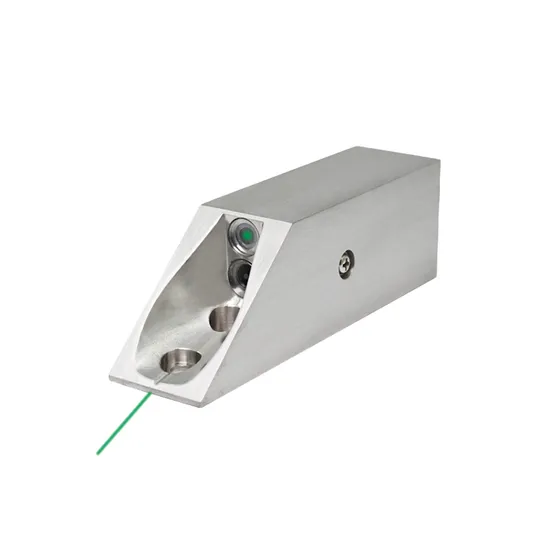

1080P Digital Wireless Camera Built-in Slotted Laser Positioning(CWHD-23A2M)
Imga Sensor	1/2.9 Color DSP
Wireless Transmission	built-in 2.4G digital wireless transmitter
Transmit Power	18dBm
Transmit Distance	open space≤100 meters
Resolution	1080P
Effective Pixels	1920(H) X1080(V)
Visible Angle	52°
Shell Material	304 stainless, anti-collision design
Laser Positioning	Green slotted laser
Waterproof Grade	IP69K
Operating Voltage	DC12V
Operating Temperature	-20ºC to +60ºC
Storage Temperature	-30ºC to +70ºC
Anti-vibration Grade	5G ( meets GB-T2423056-2006 standard )
Outer Dimension	116(W) x 37(H) x 30(D) mm
Mobile Rechargeable Power Supply (MP-03B10W1)
Cell Type	lithium-ion polymers
Cell Capacity	111Wh /30000mAh
Rated Capacity	7500mAh/(12V 0.5A)
USB Input (support fast charging)	5V=15W,9V/12V =18W
DC Output	12V(0.8A)-9.6W)Max
Waterproof Grade	IP67
Charging Environment Temperature	0ºC~+50ºC
Discharge Operating Temperature	-20ºC~+55ºC
Storage Temperature	-40ºC~+60ºC
Outer Dimension	148(W) x 88(H) x 46.5(D) mm
