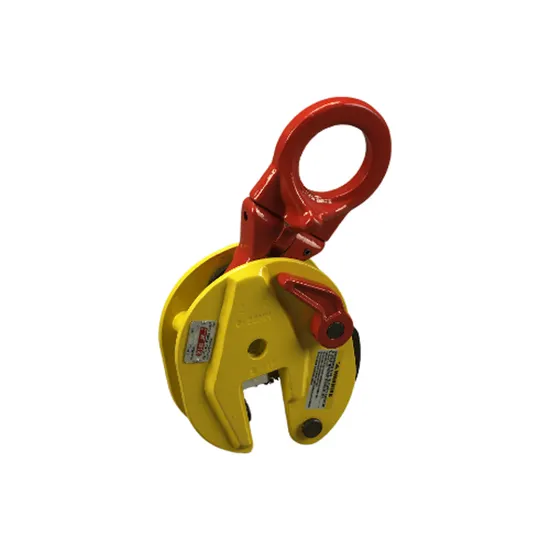

OEM High Quality Vertical Lifting Equipment Hardware Steel Plate Clamp

Product Description

Product Parameters

Model	Opening Size mm	Capacity (kg)	Test Load (kg)	Net Weight (kg)	A	B	C	E	F	G	H	K	L
CD0.8T	0-15	800	1600	2	205	125	10	12	30	105	64	29	40
CD1T	0-20	1000	2000	4	290	170	12	16	48	145	84	42	55
CD2T	0-25	2000	4000	8	375	205	18	22.5	68	175	98	55	56
CD3.2T	0-30	3200	6400	15	425	237	20	29	75	215	120	55	78
CD5T	0-50	5000	10000	21	480	262	20	30	68	232	140	59	90
CD8T	0-45	8000	16000	37	600	330	28	38	88	290	155	77	100
CD12T	50-90	1200	2400	50	700	380	25	45	90	420	243	135	112
CD16T	60-100	1600	3200	65	710	410	30	50	100	445	245	110	120

Product Description

1. For lifting and transporting steel plates and structures from all positions.
2. Equipped with hinged rings, free rotation.
3. Safety locking mechanism ensured the clamp does not slip.
4. Aside from transporting plate, this clamp is well-suited to turning over steel structures and welded constructions.
5. Dot not use the clamps in areas containing flammable vapors, liquids, gasses or combustible dust or fibers. Do not use the clamp
in highly corrosive, abrasive, wet environments or in applications involving exposure to temperatures below -40°C or above 80°C.
6. Do not exceed maximum load of the clamp.
7. Do not use the clamp to lift or transport people.
Detailed Photos

Company Profile

Qingdao DNL Group Ltd.


Since 1999Qingdao D&L Group Ltd. Is an exporting company focusing on design, manufacture, sales, and service.After 20+ years of operation improvement and experience, we have grown to become a modern enterprise with a series of products including building materials, gardening products, rigging hardware, agricultural parts, etc.Our products are popularly used in machinery, construction, petrochemical, mining, as well as other industries. With top-of-the-line production technology, an effective quality management system, and excellent after-sales service, our company was certified by ISO9001 in 2006.With more than 30 employees, our company has achieved an annual exporting volume of more than 30 million US dollars.Our high-quality products are exported to more than 150 customers in over 45 countries and regions on 5 continents. Through integrity, service, and product quality, Qingdao D&L Group Ltd. Has achieved a high reputation and trust in the industry, as well as among our existing clients.With the company focus of "excellent quality and foremost services, " D&L serves all our clients with patience, expertise, professionalism, and attentiveness.As a customer-oriented company, we here at Qingdao D&L Group Ltd. Focuses heavily on technological innovation, quality guarantee, and service satisfaction.To achieve them, we strictly control our production process, always providing superior products and services to our customers.Through continuous evaluation and improvement, we aim to ensure the satisfaction of our customers on the smallest details.Through competitive warranty, punctual delivery, efficient storage, one-stop-shop service, and all ways of transportation, we thrive to establish a long-term relationship between you and us. We look forward to doing business with you and continue to grow together in the future.
