Acrel Three Phase DIN Rail Power Energy Kwh Meter Wireless Transmission 4G WiFi Lora High Accuracy RS485 Adw300

Product Description

Descaiption

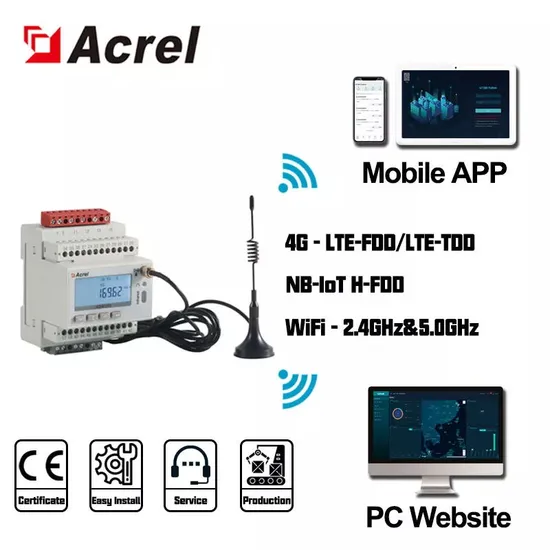

ADW300 Wireless Metering Meter is mainly used to metering three phase active energy on low voltage network. The product boasts of advantages including compact size, high precision, rich features. According to different requirements, there are many communications functions like RS485 communication, WIFI, NB, 4G, adding the new current sampling mode using external transformer. It can be flexibly installed in the distribution box to achieve sub-item electric energy metering, operation and maintenance supervision or power monitoring requirements for different regions and different loads.
How to select the right one?
ADW300 X1-X2/X3 X4 X5 X6 ADW300 -- Energy meter series X1-- if empty, then built-in transformer W: external current transformer X2-- Empty; LR: Lora; WF: WiFi; NB: NB-IoT; 4G: 4G X3-- K: 2 digital input, 4 digital output X4-- C: RS485 X5-- T 4 ways temperature measurement X6-- L: Residual Current measurement
Function

Functions	Description
Display	LCD
Energy metering	Active kWh (positive and negative), quadrant reactive power energy
Electrical measurement	U,I, P,Q,S,PF,F
Harmonic function	THDv,Harmonic on 2nd-31st
Pulse output	Active pulse output
Three-phase unbalance degree	Voltage unbalance,current unbalance
Temperature measurement	Temperature of A/B/C/N(Alternate configuration:T)
DI/DO	4DI,2DO(Alternate configuration:K)
Resident current	One-way resident current(Alternate configuration:L)
LED display	Pulse LED display
External current transformer	External open type current transformer (Alternate configuration:W)
Electrical parameter	Undervoltage, undercurrent, overcurrent, underload, etc
Communication	Infrared communication
	RS485(Alternate configuration:C)
	Wireless transmission on 470MHz (Alternate configuration:LR)
	WIFI(Alternate configuration:WF)
	NB-IOT(Alternate configuration:NB)
	4G(Alternate configuration:4G)

Electrical parameters

Voltage input	Rated voltage	3×57.7/100V,3×220/380V,3×380/660V,3×100V, 3×380V,3×660V
	Frequency	50Hz
	Consumption	<0.5VA (Each phase)
Current input	Input current	3×1(6)A ;3×1(6)A(ADW300W), 3×20(100)A(ADW300W)
	Start current	1‰ Ib (Class 0.5S),4‰ Ib (Class 1)
	Consumption	<1VA (Each phase)
Auxiliary power	Power Supply	AC 85~265V
	Power consumption	<2W
Standard	Standard	IEC 62053-22:2003,IEC 62053-21:2003
	Active energy accuracy	Class 0.5S(ADW300),Class 1(ADW300W)
	Temperature accuracy	±2ºC
80±20ms	Width of pulse	80±20ms
	Pulse constant	6400imp/kWh , 400imp/kWh
Communication	Wireless	Transmission on 470MHz and maximum distance in open space is 1km; WIFI(2.4GHz);NB;4G
	Infrared communication	The constant baud rate is 1200
	Interface	RS485(A,B)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Dimension Application with system
