Chinese Hot Selling Universal Milling Machine X8126 for Processing Small and Medium Molds
Basic Info.
Model NO.
X8126
Type
Tool Milling Machine
Object
Tool
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Travel (X) (mm)
750
Table Travel (Y) (mm)
280
Table Travel (Z) (mm)
350
Key Selling Points
Multifunctional
Spindle Taper
7:24 ISO40
Range of Spindle Speed(r.p.m)
150 - 1660 r.p.m
Weight (Kg)
1200
CNC or Not
Normal
Table Area
750*280 mm
Table Feeding Steps
8 Steps
Number of T Slot
6
Spindle Speed Steps
8
Spindle Speed Range
110-1230r/Min
After Warranty Service
Video Technical Support
Function
Processing Various Tools
Transport Package
Plywood Box
Specification
1450*1445*1650mm
Trademark
Vedon
Origin
Shandong China
HS Code
8459590000
Production Capacity
350sets/Year
Product Description
Product DescriptionProduct Parameters
| X8126A UNIVERSAL MILLING MACHINE Technical Parameters | |
| Item | Details |
| Table area(long*wide) (mm) | 700*280 |
| Distance from horizontal spindle centerline to table surface | First installation position 35-385mm Second installation position 42-392mm Third installation position 132-482mm |
| Longitudinal stroke of table (mm) | 350 |
| Lifting stroke of table (mm) | 350 |
| Table feeding steps | 8 steps |
| Table longitudibal and lifting feed range | 25-285mm/min |
| Table speed of vertical and vertical rapid movement | 1000mm/min |
| Number of T-slot | 6 |
| Width of T-slot (mm) | 14 |
| Distance of T-slot (mm) | 45 |
| Spindle taper of X8126A | 7:24 ISO40 |
| Lateral movement stroke of spindle (mm) | 200 |
| Travel per revolution of the dial (mm) | 1.5 |
| Spindle speed steps | 8 |
| Spindle speed range | 110-1230r/min |
| Spindle feeding steps | 8 |
| Spindle feed range | 25-285mm/min |
| Spindle tapper | 7:24 ISO40 |
| Manual axial movement of the spindle (mm) | 80 |
| The movement of each grid on the dial (mm) | 0.5 |
| Spindle body rotation angle | -45 |
| Spindle speed level | 8 |
| Spindle speed range | 150-1660r/min |
| Distance from the centerline of the horizontal spindle to the lower plane of the upper beam (mm) | 96 |
| Distance between the centerline of the horizontal spindle and the upper plane of the horizontal table (mm) | 35-285 |
| Distance from the front edge of the horizontal table and the front plane of the vertical guide rail of the bed due to different installation positions (mm) | 212-412 |
| Distance between the centerline of the vertical spindle and the front plane of the vertical guide rail of the bed (mm) | 155 |
| Distance between the lower and face of the vertical spindle and the plane on the horizontal table (mm) | 0-285 |
| Total power capacity (KVA) | 4 |
| Main motor power (kw) | 3 |
| Main motor speed (r/min) | 1430 |
| Cooling water pump motor (w) | 40 |
| Machine tool dimensions (long*wide*high) (mm) | 1450*1445*1650 |
| Net weight and Cross weight of machine tool (kg) | X8126&XS8126: 1180 1400 X8126A&XS8126A:1200 1400 |

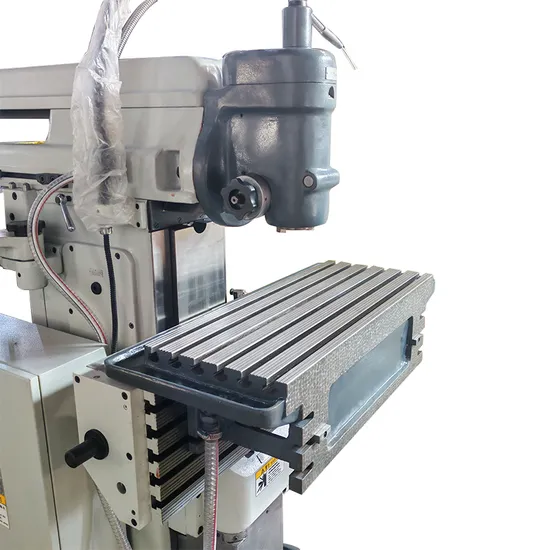

Detailed Photos
Packaging & Shipping
Company Profile
At Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
