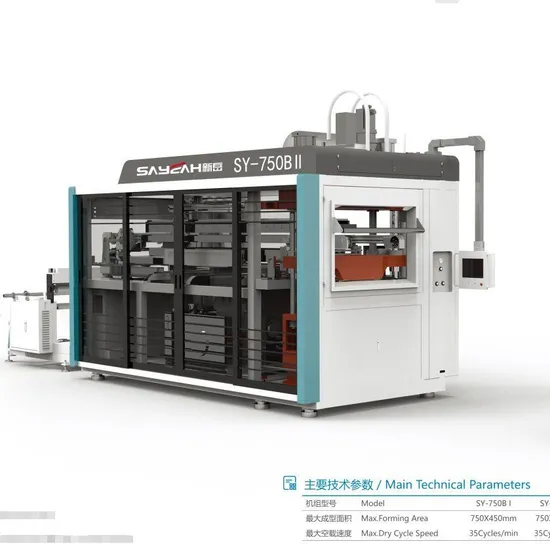

Plastic Cup Machine Plastic PP Pet Cup Lid Positive Pressure Thermoforming Machine

Product Description

plastic cup machine Plastic PP PET Cup Lid Pressure Thermoforming Machine
Features
1. The operation of the machine is controlled by PLC and touch screen
2. The mold guide plate adopts four guide posts to ensure the mold clamping accuracy
3. The chain frame adopts fast cooling and wear-resistant design
4. The chain frame exits the safe mold change system, which can greatly reduce the difficulty of mold change
5. Heating in 5-6 sections of the heating furnace to ensure that the materials are fully heated in the heating furnace
6. The cup blowing system can adjust the cup blowing angle and air volume
7. Integrated design of hydraulic system to facilitate overhaul and maintenance
8. Servo stretching system, quality assurance, durable and not easy to break
9. Simple operation, reliable performance, low noise and high quality
10. Integrated design of electric cabinet to simplify machine assembly and wiring installation process Product Parameters

Model	SY-750B II
Max.Forming Area	750×450mm
Running Pattern	Hydraulic
Feeding Patern	Servomotor
Max.Sheet Roll Dia	1100mm,1T
Stretching Pattern	Servomotor
Max.Dry Cycle Speed	35 Cycles/min
Overall Power	THK:0.2-2mm,W:Max.780mm
Sheet Specification	189kw
Max.Forming Depth,Sample Height	≤140mm (with robot) ≤175mm (by blowing)
Dimension(L×W×H)
Machine Weight	7T
Power Consumption	65Kw/h

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing Our Advantages
